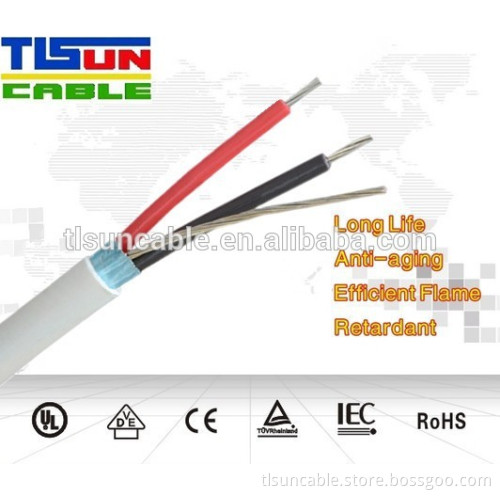

White High-performance EZ-strip broadcast audio 24 AWG 1 pair shielded plenum cable

 White High-performance EZ-strip broadcast audio 24 AWG 1 pair shielded plenum cable
Features and Benefits   7-strand annealed tinned copper conductors Cellular fluoropolymer dielectric insulation Tightly twisted and shielded Semi-pressure extruded plenum PVC jacket Low capacitance broadcast audio NEC CMP, CEC CMP FT6, RoHS compliant 1000 foot spools   Applications   Line Level, Microphone Audio Balanced and unbalanced Audio formats Infrared (IR), RS-232C signaling Class 2 and Class 3 low voltage power Instrumentation and Control     Specifications  Download PDF Spec Sheet

Product Line:	24-1P-CMP-EZ
Description	1 pair 24 AWG stranded, twisted, and shielded cable NEC type CMP and CEC type CMP FT6. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800.
Conductor	24 AWG 7-strand tinned annealed bare copper conductors Diameter: 0.024" | 0.61mm
Electrical	DC resistance: 27.7 Ω / 1000’ | 90.86 Ω/KM Mutual capacitance: 13.2 pF/FT | 43.30 pF/M Impedance: 99 Ω Inductance: 0.17µH/FT | 0.56µH/M Velocity of Propagation: 79% Voltage rating: 300V Maximum current: 2.0A@25°C
Insulation	Foam fluorinated ethylene propylene  Wall thickness: 0.015" | 0.38mm Diameter: 0.054" | 1.37mm
Regulatory	NEC: CMP 75°C CEC: CMP FT6 60°C EU RoHS-2 2011/65/EU Compliant
Color Code	Black, Red
Packages	Reel: 1000’ | 305M Weight: 12 Lbs/1000’ | 18 Kg/KM
Assembly	Pair lay length: 2.0" | 51.0mm 6.0 twists per foot | 19.6 twists per meter
Installation	Pull Tension: 11 Lbs | 49 N Bend radius: 1.40" | 36mm unloaded Bend radius: 2.80" | 72mm loaded Plenum cable should be conditioned at room temperature for 24 hours prior to installation and never installed below 32°F | 0°C ambient temperature
Construct	N/A
Applications	Plenum broadcast quality line level balanced audio Plenum low voltage control and RS-232C signaling
Shield	100% aluminum/polyester tape foil in 24 AWG 7-strand tinned copper drain
Performance	Assuming 600 source impedance: Line level balanced audio 450 feet
Jacket	Pressure extruded plenum rated polyvinyl chloride Colors: Natural White Wall thickness: 0.014" | 0.36mm Diameter: 0.140" | 3.56mm
Final Outside Diameter (inches)	0.14

      Packing & Shipping     Packing length : 40m/roll ,60m/roll ,91.4m/roll 100m/roll , 200m/roll , 300m/roll ; 305m/roll   Inner packing : plastic cover / wooden drum / paper drum ;   Outer packing : 2/4/ 6 roll / carton box ;   Other packing according to customers’ request !

ITEM NAME	MICROPHONE CABLE
CONDUCTOR	CCS/CCA/PURE COPPER/OFC
SPECIFICATION	AS REQUIRED
LENGTH(M)	AS REQUIRED
PACKING	COIL / PLASTIC SPOOL



No. of core	Conductor construction		Braid	Outer Diameter (MM)
	AWG	Inner core No./mm
1	26	10/0.12	48/0.12 64/0.12 96/0.12 or as required	5.8
	24	19/0.12		5.8
	22	26/0.12		5.8
	20	42/0.12		5.8
2	26	10/0.12		6
	24	19/0.12		6
	22	26/0.12		6
	20	42/0.12		6
3	26	10/0.12		6
	24	19/0.12		6
	22	26/0.12		6
	20	42/0.12		6
