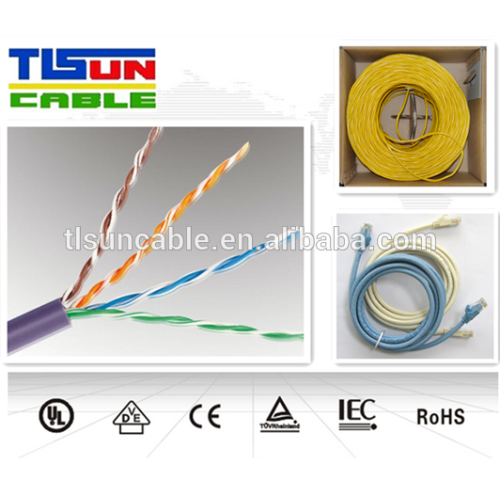

305m 24AWG ethernet cable structured cabling

305m 24AWG ethernet cable structured cabling         Product Description Specification: 4P+Mylar+D+AL Rated Temperature: 60°C or 75°C Unshielded twisted pairs: Conductor: 26AWG or 24AWG Stranding or Solid Bare copper Insulation: HD-PE Drain Wire: 26AWG or 24AWG Stranding or Solid Tinned copper Outer Shielded: AL-Mylar 100%(min) coverage Outer Jacket: PVC or LSNH Ineer Jacket:HD-PE Impedance:100±15%Ω at 1~100MHz Reference standard: YD/T1019-2001,ISO/IEC11801,ANSI/TIA/EIA-568B,UL 444 Solid copper cable passed FLUKE test

305m/Box,2Boxes/Carton
Conductor Size	0.35/0.38/0.4/0.45/0.485/0.5/0.51mm
Jacket Thinckness	0.92-0.95mm
Insulation Thinckness	0.55mm
UTP/FTP/STP/SFTP Available
Color Code   Pair 1 : Blue- White / Blue   Pair 2 : Orange- White / Orange   Pair 3 : Green- White / Green   Pair 4 : Brown- White / Brow
DC resistance(Max.)	9.5Ω/100m
DC Resistance Imbalance(Average)	2.50%
Working Capacitance(Max.)	5.4nF/100m
Insulation Resistance	10000MΩ.km
Transmission Velocity	65%
Operating temperation	75

      3 Technical Performance(100m):

Electrical Charateristics		UTP CAT5E		FTP CAT5E
Impedance(Ohm)		100±15		100±15
velocity of Propagation		70		70
Minimum Return Loss(dB)		≥23		≥23
Frequency Attenuation(dB/100m)		NEXT	PS-NEXT	ELFEXT	PA-ELFEXT
1 MHz	2.0	62.3	65.3	63.8	60.8
4 MHz	4.1	53.3	56.3	51.7	48.7
10 MHz	6.5	47.3	50.3	43.8	40.8
16 MHz	8.2	44.3	47.3	39.7	36.7
20 MHz	9.3	42.8	45.8	37.7	34.7
31.25 MHz	11.7	39.9	42.9	33.9	30.9
65.5 MHz	17.0	35.4	38.4	27.8	24.8
100 MHz	22.0	32.3	35.3	23.8	20.8

      FAQ Q:Why does your cable have so good price? A: Tlsun  is a indeed factory supplier and have our own copper factory to control the cost and quality from the raw material.   Q: What is the maximum length for a Cat5e cable?Q:  A: The maximum length for a Cat5e cable run is 100 meters (328 feet). If longer runs are required, the use of active hardware such as a repeater or switch is necessary.   Q: What is the difference between solid and stranded cable? A: Solid cable is a 4-pair cable. Within each of the 8 individual wires there is a solid piece of wire covered by a PVC jacket. Because of the solid core of these cables they will be more rigid than stranded cable, but can carry a stronger signal than stranded wire. Solid cable also has the ability to be punched down in to jacks, patch panels, and 66 blocks.   Stranded cable is a 4-pair cable as well. Within each of the 8 individual wires there are multiple tiny stands of smaller gauge wire that are held together by a PVC jacket. Because this cable is made with smaller strands of cable it is more flexible than solid core wire. Stranded Cat5e is typically use for short patch cables. Stranded wire cannot be punched down.   Q: What is shielded cable?  A: Shielded cable is used for increased protection from interference and crosstalk. It is typically used in electrical noisy environments. Common sources of interference are radio towers, high-powered electrical conduit, fluorescent lighting, or any other device emitting electro-magnetic or radio frequency signals.
