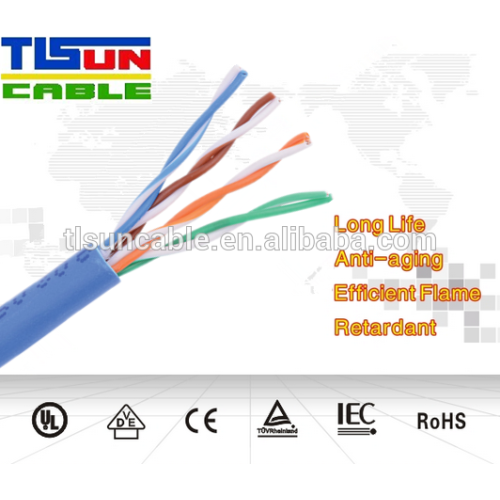

Utp cable cat5e structured cabling

 Utp cable cat5e structured cabling   1.Application computer network cabling project broadband network communication digital ISDN network and ATM 155Mbps network ethernet network audio and data transmission 100base-TX 100VG-AnyLAN 1000BASE-T(Gigabit Ethernet) ATM Noisy Enviroments   2.Specification Conductor: Material:Bare copper Number of pairs:4pairs AWG:24awg Conductor diameter:0.51±0.005mm   Insulation: Material:HDPE and FRPE Diameter:1.02±0.005mm Average thickness:0.212mm Minimum point thikness:0.2095mm   First screen:aluminum mylar shield(superposition rate:25%) Overall screen:80/0.1mm TC braid shield(coverage:60%) Braiding shield(48/64/96/112x0.12mm or 0.15mm or 0.16mm,braid material,AL-MG,CCA,CCS,copper or tinned copper for braid),FR/PVC or LSOH jacket   Jacket rip cord:optional   Sheath: Material:PVC or LSOH Nominal diameter:6.0±0.2mm Average thickness:0.50mm Operating temperature:-20 to 75°C Minimum bend radius (install):(8*OD) Flame test:CMX,CM,and IEC60332-1 Reference standard:TIA/EIA568B and IEC/ISO11801   3.Electrical characteristics

Frequency, MHz	RL	Attenuation, dB	NEXT, dB	PSNEXT, dB	ELFEXT, dB	PSELFEXT, dB
0.772	-	1.8	67	64	-	-
1	20	2	65.3	62.3	63.8	60.8
4	23	4	56.3	53.3	51.7	48.7
8	24.5	5.8	51.8	48.8	45.7	42.7
10	25	6.5	50.3	47.3	43.8	40.8
16	25	8.2	47.3	44.3	39.7	36.7
20	25	9.3	45.8	42.8	37.7	34.7
25	24.3	10.4	44.3	41.3	35.8	32.8
31.25	23.6	11.7	42.9	39.9	33.9	30.9
62.5	21.5	17	38.4	35.4	27.8	24.8
100	20.1	22	35.3	32.3	23.8	20.8

  FAQ Q:Why does your cable have so good price? A: Tlsun  is a indeed factory supplier and have our own copper factory to control the cost and quality from the raw material.   Q: What is the maximum length for a Cat5e cable?Q:  A: The maximum length for a Cat5e cable run is 100 meters (328 feet). If longer runs are required, the use of active hardware such as a repeater or switch is necessary.   Q: What is the difference between solid and stranded cable? A: Solid cable is a 4-pair cable. Within each of the 8 individual wires there is a solid piece of wire covered by a PVC jacket. Because of the solid core of these cables they will be more rigid than stranded cable, but can carry a stronger signal than stranded wire. Solid cable also has the ability to be punched down in to jacks, patch panels, and 66 blocks.   Stranded cable is a 4-pair cable as well. Within each of the 8 individual wires there are multiple tiny stands of smaller gauge wire that are held together by a PVC jacket. Because this cable is made with smaller strands of cable it is more flexible than solid core wire. Stranded Cat5e is typically use for short patch cables. Stranded wire cannot be punched down.   Q: What is shielded cable?  A: Shielded cable is used for increased protection from interference and crosstalk. It is typically used in electrical noisy environments. Common sources of interference are radio towers, high-powered electrical conduit, fluorescent lighting, or any other device emitting electro-magnetic or radio frequency signals.
