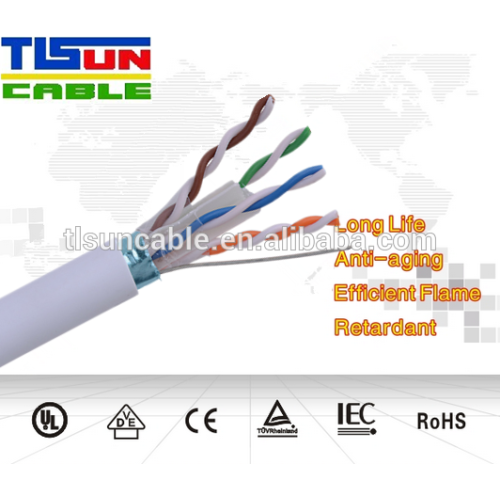

CAT6 cable FTP 1000ft twisted cable for networking

CAT6 cable FTP 1000ft twisted cable for networking
      Product Description 1 Construction   Center Conductor: 0.57±0.005 Bare Copper                                                                            Dielectric: 1.02 ±0.03mm HDPE Shield: Aluminum Foil   Jacket:  6.3±0.4mm PVC   Nom. Thick: 0.55 ± 0.05mm                                                                                                                             2 Detailed Data Sheet

Product Description:
Reted temperature: 60°C, 75°C,  90°c
Reference Standard: UL444,UL1581
Bare Solid copper conductor
RoHS/REACH Complied  LSZH Jacket
Complies to TIA/EIA-568-C.2& ISO/IEC 11801
Installation temperatu: -30°c±50°c
Content of Data Sheet
Category	Lan cable CAT6 FTP Cable
test Standard	ISO/IEC11801 TIA-568-C.2 YD/T1019
Conductor	Material	Solid Bare copper
	Nom.O.D.(mm)	0.57	up	0.005
			down	-0.005
Insulation	Material	HDPE
	Diameter	1.09±0.03mm
Sheath	Thickness	0.60±0.05mm
	External O.D.	7.4±0.4mm
	Shield	Aluminum Foil
	Material	LSZH
	Color	According to requires
Printing	Letter Height	3.0 ± 0.3mm
	Color	Black
	Print error&Space	≤±0.5%,1m
Core Color	1 White-Blue/Blue		2 White-Orange/Orange
	3 White-Green/Green		4 White-Brown/Brown
Packing	Wooden Tray&Carton
Carton Dimension	40.5cm×40.5cm×21cm
Packing Length	305 ± 1.5m
Rip-cord	YES	Drain Wire		YES
Shath Physical Propertiese	Before Aging Tensile                           Stength(Mpa)≥10.0                          Elongation(%)≥125
	Aging Period(°c×hrs) 100°c×24h×7d
	After Aging Tensile Stength(Mpa)≥8.0
	Elongation(%)≥100
	Cold Bend(-20± 2°c× 4h 8×Cable O.D.
Electrical Characteristics(20°C)	1.0-100.0MHz Impedance 100±15 ohm
	Delay Shew(ns/100m) ≤45
	NVP                              69%
	Capacitance(nF/100m)max: 5.6
	DC Resistance(Ω/100m)max:9.5
	DC Conductor Resistance Unbalance(%)max 5.0

    3 Technical Performance(100m):

Frequency MHz	RL ≥dB	Attenuation ≤dB/100m	NEXT ≥dB/100m	PHASE DELAY≤ ns	ELFEXT ≥dB/100m	PS NEXT ≥dB/100m	PS ELFEXT ≥dB/100m
1	20.0	2.03	74.3	570	67.8	72.3	64.8
4	23.0	3.78	65.3	552	55.7	63.3	52.8
8	24.5	5.32	60.8	546.73	49.7	58.8	46.7
10	25.0	5.95	59.3	545.38	47.8	57.3	44.8
16	25.0	7.55	56.2	543	43.8	54.2	40.7
20	25.0	8.47	54.8	542.05	41.8	52.8	38.8
25	24.3	9.51	53.3	541.2	39.8	51.3	36.8
31.25	23.6	10.67	51.9	540.44	37.9	49.9	34.9
62.5	21.5	15.38	47.7	538.55	31.8	45.4	28.8
100	20.1	19.8	44.3	537.6	27.8	42.3	24.8
200	18.0	28.98	39.8	536.54	21.8	37.8	18.8
250	17.3	32.85	38.3	536.27	19.8	36.3	16.8

                                              \
