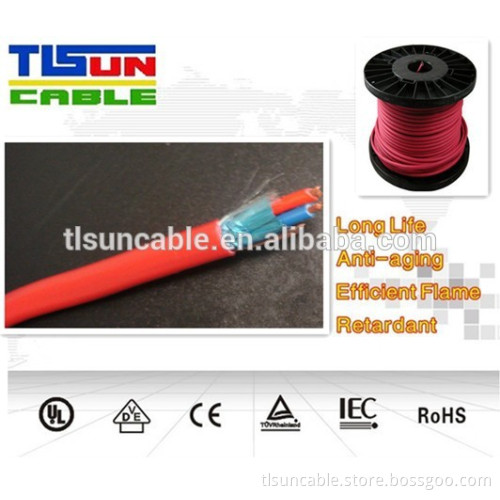

FPLP Fire Alarm cable 18AWG Fire resistant security cable

Get Latest Price

Delivery Time:: 10 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

FPLP Fire Alarm cable 18AWG Fire resistant security cable Product Description 1; 1X2X1/0.80mmOFC 2; I.D.1.5mm red PVC 3; twisted + PE film +1 / 0.50 mmTC+ foil 4; O.D: 4.5mm
Technical data Temperature range: -40 to +105 Max. rated voltage-UL: 300 Minimum bending radius:10x cable diameter Cable structure Conductor: solid bare copper PVC core insulation: 2 cores Insulation color: black and red Optional screen: Al-PET and drain wire PVC Sheath :(Red) Application: These cables are designed for installation signle aiarm and alarm systems.They allow the connection of contacts,detectors and sensors,infr-red as well asmicrowave or mixed technoiogy to the switchboard PRODUCT DESCRITION: Sihgle shield:Al/Polyester foil,coverage>100% Doublefully shield:Al/Polyester foil&tinned copper braid Alarm cable directory

Specification	Product Description
2Cx0.22mm²	2CX7/0.20mmOFC I.D:1.0mmPVC O.D:3.2mmPVC
4Cx0.22mm²	4CX7/0.20mmOFC I.D:1.0mmPVC O.D:3.6mmPVC
6Cx0.22mm²	6CX7/0.20mmOFC I.D:1.0mmPVC O.D:4.1mmPVC
8Cx0.22mm²	8CX7/0.20mmOFC I.D:1.0mmPVC O.D:4.5mmPVC
10Cx0.22mm²	10CX7/0.20mmOFC I.D:1.0mmPVC O.D:5.2mmPVC
12Cx0.22mm²	12CX7/0.20mmOFC I.D:1.0mmPVC O.D:5.5mmPVC
2Cx0.22mm²	2CX7/0.20mmOFC I.D:1.0mmPVC +AL O.D:3.2mmPVC
4Cx0.22mm²	4CX7/0.20mmOFC I.D:1.0mmPVC +AL O.D:3.6mmPVC
6Cx0.22mm²	6CX7/0.20mmOFC I.D:1.0mmPVC +AL O.D:4.1mmPVC
8Cx0.22mm²	8CX7/0.20mmOFC I.D:1.0mmPVC +AL O.D:4.5mmPVC
10Cx0.22mm²	10CX7/0.20mmOFC I.D:1.0mmPVC +AL O.D:5.2mmPVC
12Cx0.22mm²	12CX7/0.20mmOFC I.D:1.0mmPVC +AL O.D:5.5mmPVC
2Cx0.22mm²	2CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL O.D:3.3mmPVC
4Cx0.22mm²	4CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL O.D:3.8mmPVC
6Cx0.22mm²	6CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL O.D:4.2mmPVC
8Cx0.22mm²	8CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL O.D:4.6mmPVC
10Cx0.22mm²	10CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL O.D:5.3mmPVC
12Cx0.22mm²	12CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL O.D:5.6mmPVC
2Cx0.22mm²	2CX7/0.20mmOFC I.D:1.0mmPVC+7/0.20mmCU Ground+AL+96/0.12mmTC Weave O.D:3.8mmPVC
4Cx0.22mm²	4CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL+128/0.12TC Weave O.D:4.0mmPVC
6Cx0.22mm²	6CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL+128/0.12TC Weave O.D:4.6mmPVC
8Cx0.22mm²	8CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL+144/0.12TC Weave O.D:5.0mmPVC
10Cx0.22mm²	10CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL+144/0.12TC Weave O.D:5.8mmPVC
12Cx0.22mm²	12CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL+160/0.12TC Weave O.D:6.5mmPVC

The inner conductor of the above specifications can be used: oxygen-free copper wire, tinned copper, copper clad aluminum, tinned copper clad aluminum.
The outer sheath material: various color of PVC anti-flame-retardant PVC. Production according to customer requirements.
