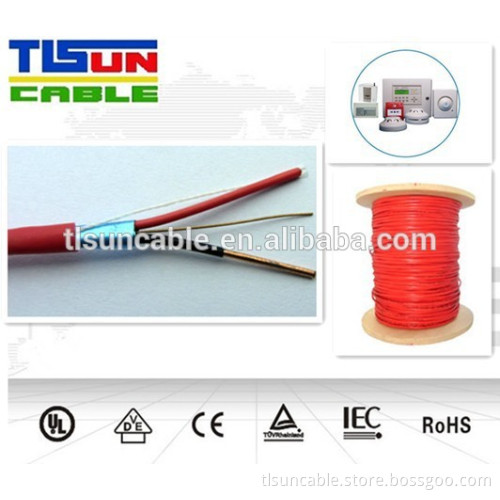

Construction 2*18AWG shielded Fire Alarm control cable

Get Latest Price

Delivery Time:: 10 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

Construction 2*18AWG shielded Fire Alarm control cable Product Description 1. Product Details

Product		Security alarm cable
Conductor	Diameter	Solid 22/4, 18/2,16/2,14/2,12/2 etc.
Conductor	Material	Bare Copper(100%)
Insulation	Avg. Thickness	0.254 mm
	Material	PVC(Fire retardant)
	Nom. Lay Length	114mm
	Color	Black,Red,White,Green
Jacket	Avg. Thickness	0.508mm
	Material	PVC(Fire retardant)
	Ripcord	Yes
	Color	Red
Shielded	Unshielded	Unshielded
Shielded	Shielded	Al Foil with drain wire

Technical data Temperature range: -40 to +105 Max. rated voltage-UL: 300 Minimum bending radius:10x cable diameter Cable structure Conductor: solid bare copper PVC core insulation: 2 cores Insulation color: black and red Optional screen: Al-PET and drain wire PVC Sheath :(Red) Application: These cables are designed for installation signle aiarm and alarm systems.They allow the connection of contacts,detectors and sensors,infr-red as well asmicrowave or mixed technoiogy to the switchboard PRODUCT DESCRITION: Sihgle shield:Al/Polyester foil,coverage>100% Doublefully shield:Al/Polyester foil&tinned copper braid Alarm cable directory

Specification	Product Description
2Cx0.22mm²	2CX7/0.20mmOFC I.D:1.0mmPVC O.D:3.2mmPVC
4Cx0.22mm²	4CX7/0.20mmOFC I.D:1.0mmPVC O.D:3.6mmPVC
6Cx0.22mm²	6CX7/0.20mmOFC I.D:1.0mmPVC O.D:4.1mmPVC
8Cx0.22mm²	8CX7/0.20mmOFC I.D:1.0mmPVC O.D:4.5mmPVC
10Cx0.22mm²	10CX7/0.20mmOFC I.D:1.0mmPVC O.D:5.2mmPVC
12Cx0.22mm²	12CX7/0.20mmOFC I.D:1.0mmPVC O.D:5.5mmPVC
2Cx0.22mm²	2CX7/0.20mmOFC I.D:1.0mmPVC +AL O.D:3.2mmPVC
4Cx0.22mm²	4CX7/0.20mmOFC I.D:1.0mmPVC +AL O.D:3.6mmPVC
6Cx0.22mm²	6CX7/0.20mmOFC I.D:1.0mmPVC +AL O.D:4.1mmPVC
8Cx0.22mm²	8CX7/0.20mmOFC I.D:1.0mmPVC +AL O.D:4.5mmPVC
10Cx0.22mm²	10CX7/0.20mmOFC I.D:1.0mmPVC +AL O.D:5.2mmPVC
12Cx0.22mm²	12CX7/0.20mmOFC I.D:1.0mmPVC +AL O.D:5.5mmPVC
2Cx0.22mm²	2CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL O.D:3.3mmPVC
4Cx0.22mm²	4CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL O.D:3.8mmPVC
6Cx0.22mm²	6CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL O.D:4.2mmPVC
8Cx0.22mm²	8CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL O.D:4.6mmPVC
10Cx0.22mm²	10CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL O.D:5.3mmPVC
12Cx0.22mm²	12CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL O.D:5.6mmPVC
2Cx0.22mm²	2CX7/0.20mmOFC I.D:1.0mmPVC+7/0.20mmCU Ground+AL+96/0.12mmTC Weave O.D:3.8mmPVC
4Cx0.22mm²	4CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL+128/0.12TC Weave O.D:4.0mmPVC
6Cx0.22mm²	6CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL+128/0.12TC Weave O.D:4.6mmPVC
8Cx0.22mm²	8CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL+144/0.12TC Weave O.D:5.0mmPVC
10Cx0.22mm²	10CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL+144/0.12TC Weave O.D:5.8mmPVC
12Cx0.22mm²	12CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL+160/0.12TC Weave O.D:6.5mmPVC

The inner conductor of the above specifications can be used: oxygen-free copper wire, tinned copper, copper clad aluminum, tinned copper clad aluminum.
The outer sheath material: various color of PVC anti-flame-retardant PVC. Production according to customer requirements.
