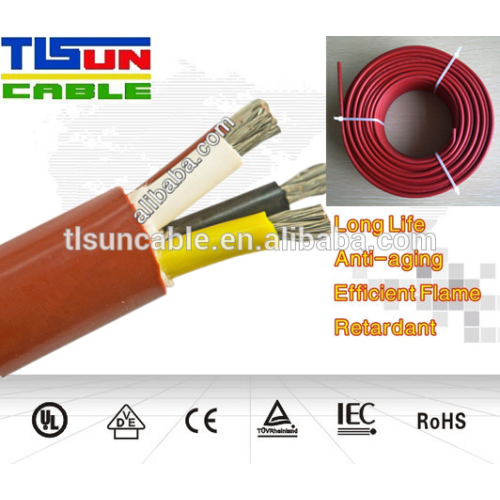

silicone rubber insulated flexible 5 core cable

silicone rubber insulated flexible 5 core cable       Product Description                                                                 Specifications SIHF - Multi wire multi core halogen - free silicone cable     Conductor: Flexible tinned copper conductors to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5. Insulation: Silicone rubber. Insulation: Silicone rubber.     Approvals - Standards In accordance with DIN VDE 0250 part 1 and part 816.   Packing Rolls, spools, drums or YAPIBOX.   Applications Silicone cables were evolved for use wherever insulation is subjected to extreme temperature changes. They are heat-resistant for permanent temperature up to +180°C, for short time op­eration up to +220°C. The good performance the environmental resistant properties means that silicone cables can be used at tem­peratures down to -60°C. Silicone cables are halogen-free cables and are especially suited for installation in power stations. They have also found their uses in the steel producing industries, aviation industry, ship building as well as in ceramic, glass and cement factories. Due to elastical characteristic of core insula­tions, these are used as flexible connection cable. Resistant to: High molecular oils, fats from vegetables and animals, alcohols, plasticizers and clophenes, diluted acids, lyes and salt dissolution, oxidation substances, tropical influences and weather, lake water, oxygen and UV.     Characteristics Physical - Chemical: - Continuous working temperature : -60°C to +180°C. Peaks at +220°C. Minimum bending radius 7,5 x Cable Ø Resistance to sunlight. Halogen-free. Does not spread flame.   Electrical Working Voltage : 300/ 500 V. Test Voltage : 2000 V.

Specification Sheet
Conductor			Insulation		Electrical Characteristic		Packing
Section mm2	Conductor construction N×mm	Diameter mm	Insulation Thickness mm	Inner Diameter mm	Conductor Resistance 20°C  ohm/km	Permissible ampacity   20°C-AMR	m/roll
0.30	12/0.18	0.72	0.54	1.80	59.78	6.00	400
0.35	7/0.254	0.78	0.60	1.98	56.40	4.36	400
0.50	16/0.20	0.92	0.60	2.12	35.20	6.68	400
0.75	24/0.20	1.13	0.60	2.33	22.20	10.03	400
1.00	32/0.20	1.31	0.60	2.51	17.52	13.42	400
1.50	30/0.254	1.60	0.70	3.00	11.99	20.02	400
2.00	41/0.254	1.88	0.71	3.30	8.78	22.00	200
2.50	49/0.254	2.06	0.80	3.66	7.17	33.47	200
