  1.Anti-bend single-sheath pair-twisted shielded drag chain cable:description&characteristics

Item	Description&characteristics

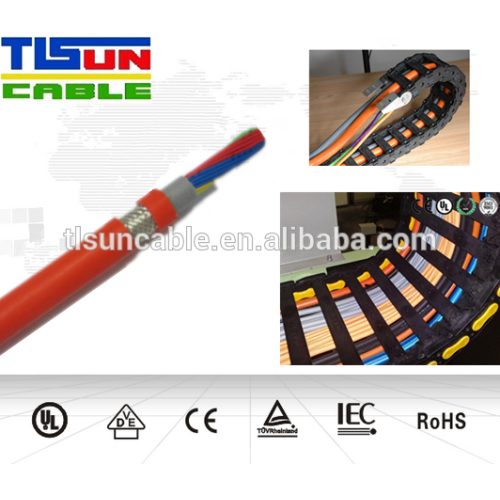

Product name	Anti-bend single-sheath pair-twisted shielded drag chain cable
Rated voltage	≤ 0.5mm2:300/300V, >0.5mm2:300/500V
Conductor material	Conductor of CAT-6
Insulation material	PVC
Color of core wire	≤ 0.5mm2:brown, black, blue, purple, pink, orange >0.5mm2:black core with white number, that of 3-core  above has yellow/green earthing wire
Shield	Tinned copper-mesh shield, density is over 80%
Outer sheath	Modified PVC(orange,black or gray)
Operating temperature	Fixed installation:-30°C~+70°C Movable installation:-5°C~+70°C
Min bending radius	Fixed installation:4*O.D. Movable installation:15*O.D.
Test voltage	2000V
Packing	In rolls, or use drums

  2.Application: Twist pair shielded drag chain cable is applicable for dry or damp indoor environment, suitable for installation under condition of free continuous reciprocating movement that is free of strong stress sustained release or compulsive lead, especially suitable for locations where require frequent bending operation in industrial operating environment, such as woodworking machinery, machine tool processing equipment, logistics conveyer system, crane and son on. It has short pair-twisted pitch, good anti-crosstalk performance, is suitable for configuration of high-speed single loop line.     3.Technical parameters: Twist pair shielded drag chain cable Anti-bend single-sheath pair-twisted shielded drag chain cable

Specification	Approximate O.D.	Weight (kg/km)	Specification	Approximate O.D.	Weight (kg/km)
2P*0.2	6.8	48	4P*0.2	7.8	73
8P*0.2	11.3	141	16P*0.2	14.3	237
2P*0.4	88.8	79	4P*0.4	10.3	124
8P*0.4	14.7	236	16P*0.4	19.2	425
2P*0.5	9.3	90	4P*0.5	11.0	145
8P*0.5	15.8	276	16P*0.5	20.7	501
2P*0.75	10.2	112	4P*0.75	12.0	181
8P*0.75	17.3	348	16P*0.75	22.7	640
