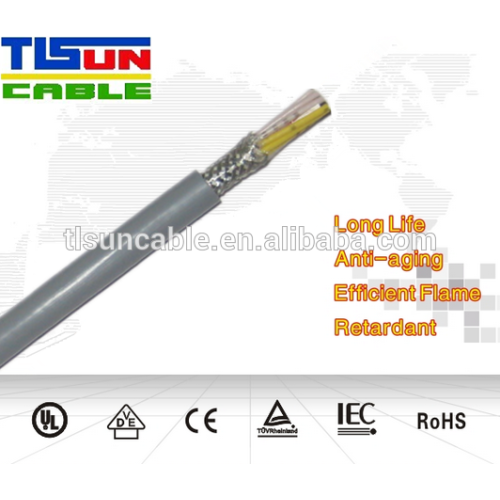

PUR 7G1.5 core Control cable Tearing cool resistant oil resistant
Cable structure Bare copper, fine wire conductors, bunch stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5 Oil resistant PVC conductor insulation TI2, in adapted to DIN VDE 0281 part 1, for better sliding abilities Black conductors with continuous white figure imprint to DIN VDE 0293 Green-yellow ground in the outer layer (3 conductors and above) Cores stranded in layers with optimal lay-length Special full-polyurethane outer jacket TMPU, to DIN EN 50363-10-2 Sheath color gray (RAL 7001) Jacket also available in other colors with meter marking, change-over in 2011 Application PURö-JZ is an extremely robust control cable with high abrasion and tear resistant properties. With high-grade oil resistant PVC conductor insulation. Due to its high resistance to mineral oils and especially to coolant emulsions, it is especially suited for use in the machine, tool making, plant construction as well as in the steel industry for difficult and problem areas. For medium mechanical stress for flexible use with free movement without tensile stress or forced movements in dry, damp and wet rooms and in outdoor. The high flexibility of this cable type makes it quick and easy to install.
CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.

Part No.	No.cores x cross-sec. mm²	Outer ø app. mm	Cop. weight kg / km	Weight app. kg / km	AWG-No.
22100	2 x 0,5	4,8	9,6	45,0	20
22101	3 G 0,5	5,1	14,4	55,0	20
22102	4 G 0,5	5,7	19,0	65,0	20
22103	5 G 0,5	6,2	24,0	75,0	20
22104	7 G 0,5	7,2	33,6	90,0	20
22105	8 G 0,5	8,0	38,0	105,0	20
22106	10 G 0,5	8,8	48,0	120,0	20
22107	12 G 0,5	9,1	58,0	135,0	20
22108	14 G 0,5	9,5	67,0	170,0	20
22109	18 G 0,5	10,7	86,0	205,0	20
22110	21 G 0,5	12,0	96,0	225,0	20
22111	25 G 0,5	13,2	120,0	270,0	20
22112	30 G 0,5	13,5	144,0	315,0	20
22113	34 G 0,5	14,7	163,0	380,0	20
22114	42 G 0,5	15,8	202,0	415,0	20
22115	50 G 0,5	17,5	240,0	550,0	20
22116	2 x 0,75	5,4	14,4	44,0	18
22117	3 G 0,75	5,7	21,6	53,0	18
22118	4 G 0,75	6,2	29,0	64,0	18
22119	5 G 0,75	6,8	36,0	76,0	18
22120	7 G 0,75	8,1	50,0	96,0	18
22121	8 G 0,75	8,7	58,0	111,0	18
22122	10 G 0,75	9,6	72,0	140,0	18
22123	12 G 0,75	9,9	86,0	170,0	18
22124	14 G 0,75	10,4	101,0	202,0	18
22125	18 G 0,75	11,9	130,0	260,0	18
22126	21 G 0,75	13,3	151,0	269,0	18
22127	25 G 0,75	14,5	180,0	282,0	18
22128	30 G 0,75	15,0	216,0	400,0	18
22129	34 G 0,75	16,3	245,0	475,0	18
22130	42 G 0,75	17,7	302,0	600,0	18
22131	50 G 0,75	19,4	360,0	720,0	18
22132	2 x 1	5,7	19,0	53,0	17
22133	3 G 1	6,0	29,0	63,0	17
22134	4 G 1	6,6	38,0	75,0	17
22135	5 G 1	7,1	48,0	89,0	17
22136	7 G 1	8,6	67,0	115,0	17
22137	8 G 1	9,4	77,0	131,0	17
22138	10 G 1	10,2	96,0	166,0	17
22139	12 G 1	10,7	115,0	201,0	17
22140	14 G 1	11,5	134,0	230,0	17
22141	18 G 1	12,9	173,0	289,0	17
22142	21 G 1	14,1	196,0	306,0	17
22143	25 G 1	14,9	240,0	380,0	17
22144	32 G 1	16,7	308,0	620,0	17
22145	34 G 1	17,4	326,0	645,0	17
22146	42 G 1	18,8	403,0	730,0	17
22147	50 G 1	20,9	480,0	890,0	17
22148	2 x 1,5	6,2	29,0	68,0	16
22149	3 G 1,5	6,6	43,0	87,0	16
22150	4 G 1,5	7,2	58,0	106,0	16
22151	5 G 1,5	8,0	72,0	131,0	16
22152	7 G 1,5	9,6	101,0	173,0	16
22153	8 G 1,5	10,5	115,0	199,0	16
22154	10 G 1,5	11,4	144,0	245,0	16
22155	12 G 1,5	12,0	173,0	293,0	16
22156	14 G 1,5	12,5	202,0	347,0	16
22157	18 G 1,5	14,1	259,0	454,0	16
22158	21 G 1,5	15,0	302,0	534,0	16
22159	25 G 1,5	16,8	360,0	641,0	16
22160	30 G 1,5	18,0	410,0	800,0	16
22161	34 G 1,5	19,5	490,0	945,0	16
22162	42 G 1,5	21,1	605,0	1100,0	16
22163	50 G 1,5	25,4	720,0	1250,0	16
22164	2 x 2,5	7,8	48,0	110,0	14
22165	3 G 2,5	8,3	72,0	146,0	14
22166	4 G 2,5	9,2	96,0	183,0	14
22167	5 G 2,5	10,1	120,0	222,0	14
22168	7 G 2,5	12,3	168,0	293,0	14
22169	12 G 2,5	15,3	288,0	512,0	14
22170	18 G 2,5	18,2	432,0	740,0	14
22171	25 G 2,5	22,3	600,0	940,0	14
22172	2 x 4	9,6	77,0	147,0	12
22173	3 G 4	10,4	115,0	228,0	12
22174	4 G 4	11,4	154,0	291,0	12
22175	5 G 4	12,7	192,0	355,0	12
22176	7 G 4	14,0	269,0	503,0	12
