LIY (ST) CY TP AL shielding control data transmition cables

Get Latest Price

Delivery Time:: 10 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

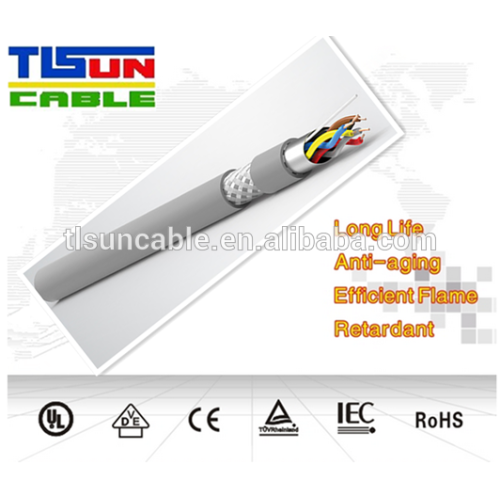

LIY (ST) CY TP AL shielding control data transmition cables Product Description Flexible Data Transmission Cable 300/500V Signal cable and Control Cable LIY ST CY Specifications Used in electronic control systems in voice frequency, signal and data transmission, in office machinery and measurement devices

Construction
Conductor	:	Flexible Copper Wires
Insulation	:	PVC Compound
Core Identification	:	Accordign to DIN 47100
Lay-up	:	Cores laid up layers of optimum pitch
Seperator	:	Polyester Tape
Screen	:	With drain wire under the AL-PES tape
Screen		Braid of tinned Cu Wires, 65% coverage
Outer Sheath	:	PVC Compound
Sheath Colour	:	RAL 7032, Grey

Electrical Parameters
Standard	:	VDE 0812
Insulation Resistance	:	Min. 200 Ω/km
Mutual Capacitance	:	Max. 120 Nf/KM
Inductance / Impedance	:	78 ohm
Test Voltage	:	Max. 350V < 0,25 mm < max 500 V
Rated Voltage		800V < 0,25 mm < 1200V
Temperature Range	:	Fixed : -20⁰ C~+70⁰C Mobile : -5⁰C~+70⁰C
Min. Bending Radius	:	Fixed : 6xD Mobile : 15xD

No of Cores x Cross Section (mm²)	:	2x0,22	3x0,22	4x0,22	5x0,22	6x0,22	8x0,22	10x0,22	12x0,22	14x0,22
Approx. Outer Diameter (mm)	:	4,3	4,5	4,8	5,3	5,5	6,1	6,8	7,1	7,4
Approx. Cable Weight (kg/km)	:	11	13	19	21	26	30	37	37	42
No of Cores x Cross Section (mm²)	:	2x0,50	3x0,50	4x0,50	5x0,50	6x0,50	8x0,50	10x0,50	12x0,50	14x0,50
Approx. Outer Diameter (mm)	:	6	6,2	6,7	7,1	7,9	8,7	10	10,4	10,8
Approx. Cable Weight (kg/km)	:	25	31	39	45	53	64	77	89	100
No of Cores x Cross Section (mm²)	:	2x0,75	3x0,75	4x0,75	5x0,75	6x0,75	8x0,75	10x0,75	12x0,75	14x0,75
Approx. Outer Diameter (mm)	:	6,2	6,5	7,0	7,8	8,5	9,3	10,6	11,0	11,6
Approx. Cable Weight (kg/km)	:	57	63	72	89	107	140	175	194	219
No of Cores x Cross Section (mm²)	:	2x1	3x1	4x1	5x1	6x1	8x1	10x1	12x1	14x1
Approx. Outer Diameter (mm)	:	6,5	6,9	7,3	7,8	8,7	10,0	11,0	11,9	12,9
Approx. Cable Weight (kg/km)	:	60	72	91	120	134	183	225	245	287
No of Cores x Cross Section (mm²)	:	2x1,5	3x1,5	4x1,5	5x1,5	6x1,5	8x1,5	10x1,5	12x1,5	14x1,5
Approx. Outer Diameter (mm)	:	7,3	7,7	8,3	9,2	9,9	11,2	13,0	14,0	14,7
Approx. Cable Weight (kg/km)	:	85	95	120	154	185	242	308	338	386
