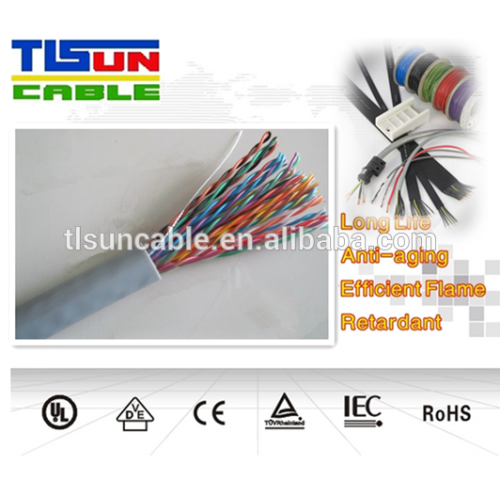

category 3 /25pair communication cable Unshielded Copper cable

category 3 /25pair  communication cable Unshielded Copper cable          Product Description Technical characteristics:

Conductor diameter: 0.5 mm (0.019") (24 AWG) Insulated conductor diameter: 0.9 mm (0.035") Outer cable diameter: 12 mm (0.47") Jacket thickness: 1.3 mm (0.051") Maximum strand pitch: 100 mm (3.93") Minimum bend radius: 8 outer cable diameters Conductor elongation: 14% minimum Rip cord has a breaking strength of 10 kg (98 N) Installation temperature: -10°C – +50°C (+14°F – +122°F) Operating temperature: -40°C – +50°C (-40°F – +122°F) Weight per 1000 ft (304.8 m): 42.7 kg (94.14 lbs) Standard package: 1000 m (3280 ft)

Specifications:

Meets EIA/TIA 568-B for category 3 requirements Fire protection – CMX The cable meets IEC 60332-1 fire safety standard

Description:

Unshielded Copper cable, 10/25/50/100 pairs, category 3, solid Cable is used for outdoor installation

Materials:

Conductive material: wire made of soft annealed electrolytic copper Conductor insulation: HDPE The cable jacket: UV resistant black PE

Electrical characteristics:

Max DC Resistance at 20°C	9.38 Ohm/100 m (2.9 Ohm/100 ft)
Max Resistance Unbalance	5%
Max Capacitance unbalance pair-to-ground at 1kHz	330 pF/100m (100.58 pF/ 100ft)
Characteristic Impedance at 1-16 MHz	85-115 Ohm
Min worst pair Structural Return Loss (SRL)  at 10 MHz at 16 MHz	12 dB 10 dB
Max attenuation at 20°C at 772 kHz at 1 MHz at 4 MHz at 8 MHz at 10 MHz at 16 MHz	2.2 dB/100 m (0.67 dB/100 ft)  2.6 dB/100 m (0.79 dB/100 ft)  5.6 dB/100 m (1.70 dB/100 ft)  8.5 dB/100 m (2.59 dB/100 ft)  9.7 dB/100 m (2.96 dB/100 ft)  13.1 dB/100 m (3.99 dB/100 ft)
Min worst pair to pair NEXT loss  at 772 kHz at 1 MHz at 4 MHz at 8 MHz at 10 MHz at 16 MHz	43 dB 41 dB 32 dB 27 dB 26 dB 23 dB
Min Relative Velocity of Propagation at 10 MHz	0,585

Ordering:         FAQ Q:Why does your cable have so good price? A: Tlsun  is a indeed factory supplier and have our own copper factory to control the cost and quality from the raw material.   Q: What is the maximum length for a Cat5e cable?Q:  A: The maximum length for a Cat5e cable run is 100 meters (328 feet). If longer runs are required, the use of active hardware such as a repeater or switch is necessary.   Q: What is the difference between solid and stranded cable? A: Solid cable is a 4-pair cable. Within each of the 8 individual wires there is a solid piece of wire covered by a PVC jacket. Because of the solid core of these cables they will be more rigid than stranded cable, but can carry a stronger signal than stranded wire. Solid cable also has the ability to be punched down in to jacks, patch panels, and 66 blocks.   Stranded cable is a 4-pair cable as well. Within each of the 8 individual wires there are multiple tiny stands of smaller gauge wire that are held together by a PVC jacket. Because this cable is made with smaller strands of cable it is more flexible than solid core wire. Stranded Cat5e is typically use for short patch cables. Stranded wire cannot be punched down.   Q: What is shielded cable?  A: Shielded cable is used for increased protection from interference and crosstalk. It is typically used in electrical noisy environments. Common sources of interference are radio towers, high-powered electrical conduit, fluorescent lighting, or any other device emitting electro-magnetic or radio frequency signals.
