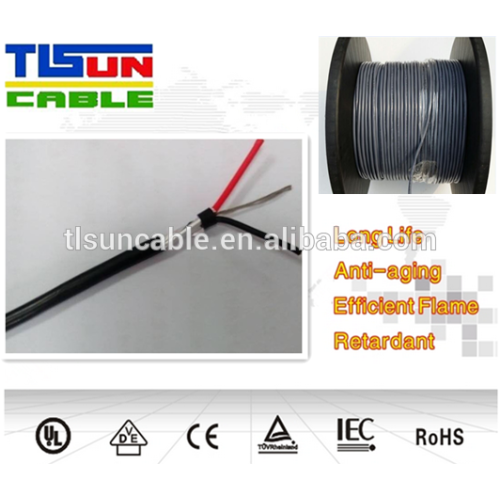

LIYY 8460 PAIRED CABLE 1 PR 18AWG STRAND AUDIO/INSTRUMENT CABLE

    LIYY 8460 PAIRED CABLE 1 PR 18AWG STRAND AUDIO/INSTRUMENT CABLE          Product Description                                                               Description:
18 AWG stranded (16x30) tinned copper conductors, polyethylene insulation, twisted pair, overall Beldfoil®
shield (100% coverage), 20 AWG stranded tinned copper drain wire, PVC jacket.
Physical Characteristics (Overall)
Conductor
AWG:
# Pairs AWG Stranding Conductor Material
1 18 16x30 TC - Tinned Copper
Insulation
Insulation Material:
Insulation Material Wall Thickness (in.)
PE - Polyethylene .019
Outer Shield
Outer Shield Material:
Outer Shield Trade Name Type Outer Shield Material Coverage (%)
Beldfoil® Tape Aluminum Foil-Polyester Tape w/Shorting Fold 100
Outer Shield Drain Wire AWG:
AWG Stranding Drain Wire Conductor Material
20 7x28 TC - Tinned Copper
Outer Jacket
Outer Jacket Material:
Outer Jacket Material Nom. Wall Thickness (in.)
PVC - Polyvinyl Chloride .028
Overall Cabling
Overall Nominal Diameter: 0.222 in.
Pair
Pair Color Code Chart:
Number Color
1 Black & Clear
Pair Lay Length & Direction:
Lay Length (in.) Twists/ft. (twist/ft)
2.500 4.800
Mechanical Characteristics (Overall)
Operating Temperature Range: -20°C To +60°C
UL Temperature Rating: 60°C (UL AWM Style 2092)
Bulk Cable Weight: 26.600 lbs/1000 ft.
Max. Recommended Pulling Tension: 62 lbs.
Min. Bend Radius (Install)/Minor Axis: 2.250 in.
