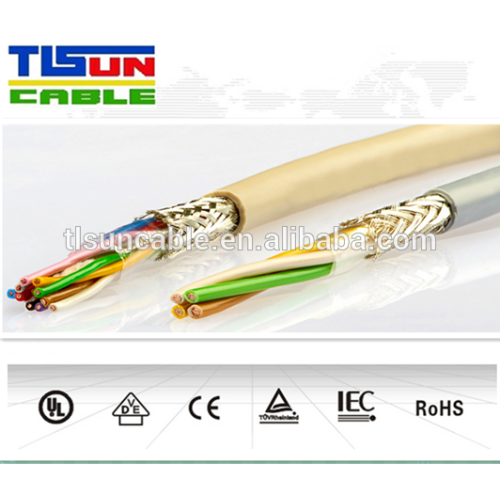

Interconnecting cable in (rapid) data systems for high and reliable data rate Product Description LIYCY – Flexible Data Transmission Cable Specifications Used in electronic control systemsin voice frequency, signal and data transmission, in office machinery and measurement devices.

Construction
Conductor	:	Flexible Copper Wires
Insulation	:	PVC Compound
Core Identification	:	Accordign to DIN 47100
Lay-up	:	Cores laid up layers of optimum pitch
Seperator	:	Polyester Tape
Screen	:	Braid of tinned Cu Wires, 85% coverage
Outer Sheath	:	PVC Compound
Sheath Colour	:	RAL 7032, Grey

Electrical Parameters
Standard	:	VDE 0812
Insulation Resistance	:	Min. 200 Ω/km
Mutual Capacitance	:	Max. 120 Nf/KM
Inductance / Impedance	:	78 ohm
Test Voltage	:	Max. 350V < 0,25 mm < max 500 V
Rated Voltage		800V < 0,25 mm < 1200V
Temperature Range	:	Fixed : -20⁰ C~+70⁰C Mobile : -5⁰C~+50⁰C
Min. Bending Radius	:	Fixed : 6xD Mobile : 15xD

No of Cores x Cross Section (mm²)	:	2x0,22	3x0,22	4x0,22	5x0,22	6x0,22	8x0,22	10x0,22	12x0,22	14x0,22
Approx. Outer Diameter (mm)	:	4,3	4,5	4,9	5,4	5,8	6,4	7,1	7,3	7,9
Approx. Cable Weight (kg/km)	:	25	30	35	40	50	63	75	85	100
No of Cores x Cross Section (mm²)	:	2x0,50	3x0,50	4x0,50	5x0,50	6x0,50	8x0,50	10x0,50	12x0,50	14x0,50
Approx. Outer Diameter (mm)	:	5,2	5,4	5,9	6,3	6,9	8,0	8,8	9,2	9,5
Approx. Cable Weight (kg/km)	:	35	40	50	55	70		95	115	140
No of Cores x Cross Section (mm²)	:	2x0,75	3x0,75	4x0,75	5x0,75	6x0,75	8x0,75	10x0,75	12x0,75	14x0,75
Approx. Outer Diameter (mm)	:	5,7	5,9	6,5	7,0	7,7	8,6	9,7	10,2	10,6
Approx. Cable Weight (kg/km)	:	55	65	75	90	105	130	145	180	205
No of Cores x Cross Section (mm²)	:	2x1	3x1	4x1	5x1	6x1	8x1	10x1	12x1	14x1
Approx. Outer Diameter (mm)	:	6,0	6,5	7,1	7,8	8,4	9,4	10,8	11,2	11,7
Approx. Cable Weight (kg/km)	:	65	80	100	120	145	180	220	260	167
No of Cores x Cross Section (mm²)	:	2x1,5	3x1,5	4x1,5	5x1,5	6x1,5	8x1,5	10x1,5	12x1,5	14x1,5
Approx. Outer Diameter (mm)	:	6,8	7,4	8,0	8,8	9,6	11,1	12,8	13,2	14,1
Approx. Cable Weight (kg/km)	:	85	100	125	150	185	225	275	300	360
No of Cores x Cross Section (mm²)	:	2x2,5	3x2,5	4x2,5	5x2,5	7x2,5	8x2,5	10x2,5	12x2,5	14x2,5
Approx. Outer Diameter (mm)	:	8,1	8,8	9,6	10,6	11,2	13,1	15,0	15,6	16,8
Approx. Cable Weight (kg/km)	:	108	135	170	202	240	319	386	435	525
