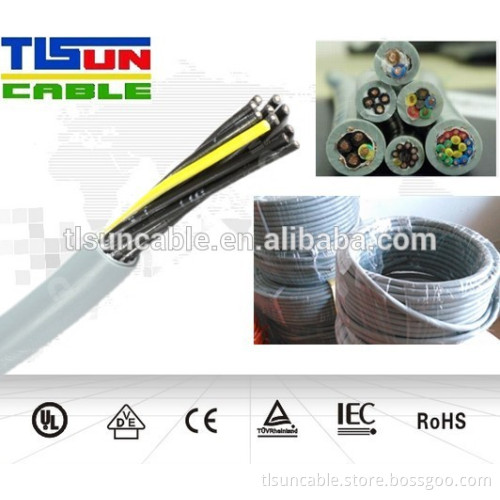

    10*0.5mm YY Control Flexible Cable for automative system   Product Description    In power chains or moving machine parts Suitable for use in measuring, control and regulating circuits Power circuits for electrical equipments used in automation engineering Assembly lines, production lines, in all kinds of machines Plant engineering   Benefits   Well-proven and reliable Cost-effective solution   Design   Extra-fine wire strand made of bare copper wires (class 6) Core insulation: PVC Cores twisted in layers in short lay lengths PVC inner sheath, (color is according to your demand) No braiding or tinned-copper braiding Non-woven wrapping PVC outer sheath, (color is according to your demand)   Norm references / Approvals   Core based on VDE 0245/0285 Outer sheath based on VDE 0245/0285 For travel distances up to 10 m. For use in power chains: Please comply with the assembly guidelines listed in Appendix T3   Product features   Low-adhesive surface Flame-retardant according IEC 60332-1-2 In damp or wet interiors Designed for 2 up to 8 million bending/unbending cycles in power chain applications. Only for outdoor use within the indicated operating temperature range, with UV-protection       Technical Data

Core identification code Black with white numbers acc. to VDE 0293 Classification ETIM 5.0 Class-ID: EC000104 ETIM 5.0 Class-Description: Control cable Specific insulation resistance > 20 GOhm x cm Conductor stranding Extra-fine wire acc. to VDE 0295, class 6/ IEC 60228 class 6 Minimum bending radius For flexible use: 7.5 x outer diameter Fixed installation: 4 x outer diameter             Nominal voltage U0/U: 300/500 V Test voltage 4000 V Protective conductor G = with GN-YE protective conductor X = without protective conductor Temperature range Flexing: 0°C to +70°C Fixed installation: -40°C to +80°C



Reference Standard: BS6500  ,VDE0250		Rated Voltage: 300/500V			Rated Temperature: -35℃ to +70℃
Conductor: Class 5 Copper Conductor		Insulation: PVC Compound			Sheath: PVC Compound
Characteristics: GSWB( Galvanised Steel Wire Braid) and transparent sheath
Application: Measuring, controlling or regulation in control equipment and production lines
No.of Cores x Normal Cross Sectional Area (mm2 )	Normal Diameter of Strand (mm)		Normal Thickness of Insulation (mm)	Normal Thickness of Jacket (mm)	Over Diameter of Cable (mm)	Max Conductor Resistance at 20℃ ( ≤ohm/km )
2x0.75	0.20		0.6	0.8	6.0~7.6	26.0
2x1.0	0.20		0.6	0.8	6.4~8.0	19.5
2x1.5	0.25		0.7	0.8	7.4~9.0	13.3
3x0.5	0.20		0.5	0.7	5.8~7.3	31.5
3x0.75	0.20		0.6	0.8	6.4~8.0	26.0
3x1.0	0.20		0.6	0.8	6.8~8.4	19.5
3x1.5	0.25		0.7	0.9	8.0~9.8	13.3
3x2.5	0.25		0.8	1.0	9.6~12.0	7.98
3x4.0	0.30		1.0	1.2	12.4~14.3	4.95
3x6.0	0.30		1.0	1.3	14.1~16.0	3.30
3x10	0.40		1.2	1.5	19.1~24.2	1.91
3x16	0.40		1.2	1.6	21.8~27.6	1.21
4x0.75	0.20		0.6	0.8	6.8~8.6	26.0
4x1.5	0.25		0.7	1.0	9.0~11.0	13.3
5x1.0	0.20		0.6	0.9	8.3~10.0	19.5
7x0.75	0.20		0.6	0.8	8.5~10.2	26.0
7x1.0	0.20		0.6	0.9	8.8~10.5	19.5
8x1.5	0.25		0.7	1.0	10.7~12.9	13.3
