      APPLICATION Used as interconnecting cable for measuring, controlling or regulation in control equipment for assembly and production lines, conveyors and for computer units. Suitable for fixed installations or for flexible use when temporarily moved, and in conditions of medium mechanical stress. Can be used outdoors when protected, and in dry or damp conditions indoors. CABLE STANDARDS Generally to BS EN 50525-2-51, BS EN/IEC 60332-1

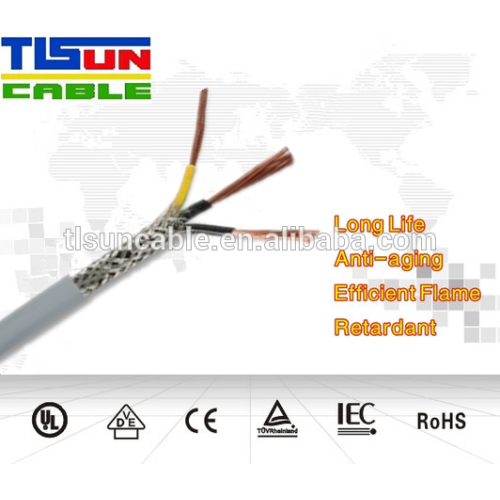

CONSTRUCTION Conductor Class 5 flexible copper conductor according to BS EN 60228 (previously BS 6360)   Insulation PVC (Polyvinyl Chloride) Type TI2 according to BS EN 50363   Binding Tape PET (Polyester Tape)   Screen TCWB (Tinned Copper Wire Braid)   Sheath PVC (Polyvinyl Chloride) Type TM2 according to BS EN 50363 CHARACTERISTICS Voltage Rating (Uo/U) 300/500V   Temperature Rating Fixed: -30°C to +80°C Flexed: -5°C to +70°C   Minimum Bending Radius Fixed: 6 x overall diameter Flexed: 15 x overall diameter   Core Identification Black with White numbers (3 cores and above to include Green/Yellow)

Colour Coded Cores
3 core: Green/Yellow Brown Blue
4 core: Green/Yellow Brown Black Grey   What is the difference between YY Flex, SY Cable and CY Control Cable?   In the Control Flex family, the versatile YY Flex works well in situations with light mechanical stress and is suited to most environments. It can be used outside when protected and in both dry and moist conditions indoors.   Those who require interference-free transmission need CY Control Cable. This Multicore Flex has a tinned copper wire braid and a PETP (Polyethylene Terephthalate) separator, which work together to protect the Control Cable from external electromagnetic influences and some mechanical stresses.   SY Flex is the toughest one of the family. If you need reliable mechanical protection, the galvanised steel wire braid on this Control Cable puts it in a league of its own. Uses As well as automation and process control, SY Control Cable is used in the rail and transport industry, building and construction, and transmission, distribution and power networks. Found on assembly and production lines, conveyors, in computer units and machine tool manufacture, SY Cable is designed for use in fixed installations and as an interconnecting cable between fixed and mobile equipment.
