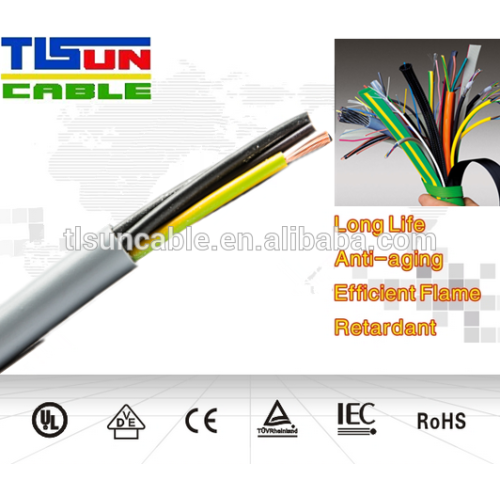

   YSLY-JZ/JB/OZ/OB flexible control cable
  Product Description
Technical data
Conductor Fine stranded red copper, class 5
Conductor insulation PVC
Core color Black, numbered + green-yellow
Outer sheath PVC, grey
Chemical resistance Good oil resistance
Temperature range, flexible application -5°C….+80°C
Temperature range, fixed installation -40°C….+80°C
Nominal voltage Uo/U 300/500V
Test voltage 4000V
Minimum bending radius, flexible application 7,5 x cable diameter
Standards According to: DIN VDE 0281, ROHS
  Visa 10152550100 rader
Cable type No. cores x cross section mm² Outer Ø mm ±10% Cu weight kg/km Cable weight app. kg/km
YSLY-OZ 2x0,5 5.1 9.6 37
YSLY-OZ 2x0,75 5.7 14.4 47
YSLY-OZ 2x1 5.9 19.2 53
YSLY-OZ 2x1,5 6.7 28.8 71
YSLY-OZ 2x2,5 8.1 48 107
YSLY-JZ 3G0,5 5.4 14.4 43
YSLY-JZ 3G0,75 6.2 21.6 59
YSLY-JZ 3G1 6.4 28.8 67
YSLY-JZ 3G1,5 7.1 43.2 87
YSLY-JZ 3G2,5 8.6 72 133
YSLY-JZ 3G4 10.2 115.2 196
YSLY-JZ 3G6 12.1 172.8 286
YSLY-JZ 4G0,5 5.8 19.2 52
YSLY-JZ 4G0,75 6.7 28.8 71
YSLY-JZ 4G1 7 38.4 82
