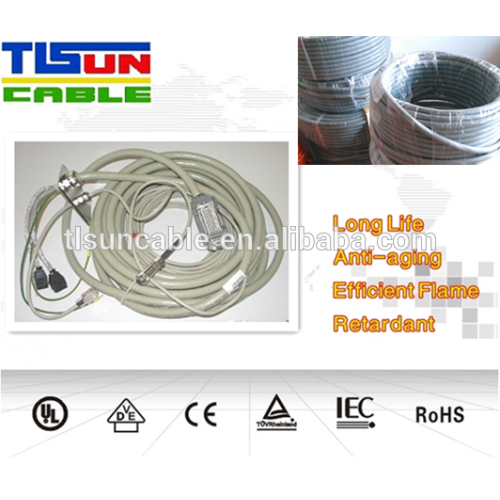

3HAC8159 20m Control cable for industry robot system

  3HAC8159  20m Control cable for  industry robot system
    Cable Construction Control cable with high abrasion and tear resistant properties. Also resistant to mineral oils, especially to coolant emulsions and UV radiation. The copper braid screen protects against electromagnetic interferences and is, therefore, suitable as data transmission cable and connection cable. Technical Information

Conductor:	Bare flexible stranded copper
Stranding:	According to VDE 0295 class 5, IEC 60228
Insulation:	Black PVC, number coded, G / Y earth
Bedding:	PVC
Screen:	Tinned copper wire braid screen, plain stranded copper
Outer Sheath:	PUR Grey, RAL 7001, microbe and hydrolysis resistant
Voltage:	Working:	300/500V
	Test:	2000V
Temperature Range:	Flexing:	-5°C to +70°C
	Static:	-5°C to +70°C
Bending Radius:	12.5 x Ø



Number of cores and mm2per conductor	Approx. outside diameter in mm ca.	Copper weight  kg/km	Approx. weight  kg/km
2 x 0.5	8.0	39	92
3 G 0.5	8.3	44	100
4 G 0.5	8.8	52	120
5 G 0.5	9.7	61	139
7 G 0.5	11.2	75	175
12 G 0.5	13.7	131	276
18 G 0.5	15.7	168	376
25 G 0.5	18.5	212	485
2 x 0.75	8.4	45	104
3 G 0.75	8.7	52	119
4 G 0.75	9.5	67	142
5 G 0.75	10.2	75	165
7 G 0.75	11.9	96	210
12 G 0.75	14.5	160	331
18 G 0.75	16.9	217	468
25 G 0.75	20.3	283	596
2 x 1.0	8.7	49	117
3 G 1.0	9.3	60	132
4 G 1.0	9.9	78	163
5 G 1.0	10.8	88	187
7 G 1.0	12.8	115	255
12 G 1.0	15.4	201	419
15 G 1.0	17.7	267	546
25 G 1.0	21.5	351	738
34 G 1.0	23.8	498	972
2 x 1.5	9.5	68	159
3 G 1.5	9.9	83	180
4 G 1.5	10.8	102	217
5 G 1.5	11.6	119	265
7 G 1.5	14.2	186	392
12 G 1.5	16.8	264	554
18 G 1.5	20.0	379	782
25 G 1.5	23.5	534	1,059
34 G 1.5	26.7	695	1,359
41 G 1.5	28.9	803	1,579
3 G 2.5	11.4	121	264
4 G 2.5	12.6	145	307
5 G 2.5	14.0	205	413
7 G 2.5	16.4	259	533
12 G 2.5	21.0	407	795
