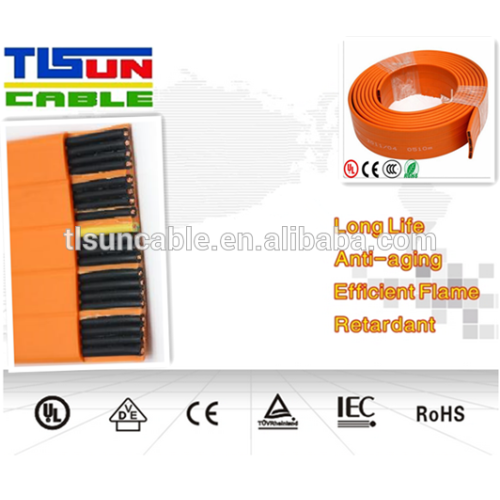

16 core PVC Flexible Flat Travel Cable

    16 core PVC Flexible Flat Travel Cable   Specifications 1) Copper conductor flexible flat cable
2) Various products for wide application
3) Excellent performance & competitive price Application Flexible flat cable is used for crane, submersible pump, elevators of rated voltage 1kV and below. The product can be used in very harsh environment by adopting insulation and sheath of of different material.   Product Description 1) Rated voltage: 1000V and below 2) Insulation and sheath material: PVC, NBR, TPU, TPE 3) Max. conductor working temperature: PVC (70 °c), NBR (70 °c), TPE (90 °c), TPU (180°c) 4) Conductor: class 5, 6 copper, tinned or plain 5) Sectional area: 0.75-95mm2 6) No. of cores: 2~48 7) Sheath:  rubber 8) Max. conductor DC resistance at 20°c:

Sectional area (mm2)	2.5	4	6	10	16	25	35	50	70	95
Tinned copper (Ω/km)	8.21	5.09	3.39	1.95	1.24	0.795	0.565	0.393	0.277	0.21
Plain copper (Ω/km)	7.98	4.95	3.30	1.91	1.21	0.78	0.554	0.386	0.272	0.206

Note: this product can have different working temperatures based on different insulation and sheath material.
