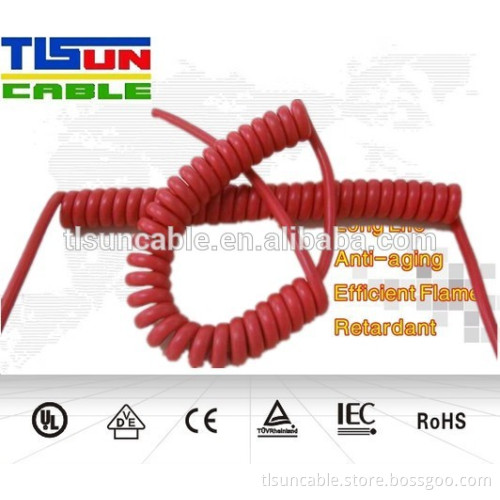

ROSH UL20733 PUR electrical spring cable

          ROSH  UL20733 PUR  electrical spring cable   Product Description: 1.Tinned,annealed,stranded or solid copper conductor. 2. PP,PE or TPE insulation. PUR jacketed. 3.Rated temperature: 60°C.Rated voltage: 30 volts. 4.Tinned or bare copper wire spiral or braid shield. 5.Passes UL VW-1&CUL FT1 vertical flame test. Applications: Internal wiring of electronic equipment, Class 2 Circuits only.

UL Style& CUL Type	Cores	Conductor		Insulation Thickness	Nom.Dia	Shield Coverage	Jacket Thickness	Overall Dimeter	Conductor Resistance at 20°C
		AWG	No/mm	mm	mm	%	mm	mm	Ω/KM
UL20563 CUL (Stranded)	2C	30	7/0.100	0.23	0.80	>=65	0.38	4.60	381.00
		28	7/0.127	0.23	0.90	>=65	0.38	4.80	239.00
		26	7/0.16	0.23	1.00	>=65	0.38	4.90	150.00
		24	11/0.16	0.23	1.10	>=65	0.38	5.00	94.20
		22	17/0.16	0.23	1.30	>=65	0.38	5.40	59.40
		20	21/0.178	0.23	1.50	>=65	0.38	5.80	36.70
		18	34/0.178	0.23	1.80	>=65	0.38	6.40	23.20
		16	26/0.25	0.23	2.00	>=65	0.38	7.20	14.60
UL20563 CUL  (Stranded)	3C	30	7/0.100	0.23	0.80	>=65	0.38	4.80	381.00
		28	7/0.127	0.23	0.90	>=65	0.38	5.00	239.00
		26	7/0.16	0.23	1.00	>=65	0.38	5.20	150.00
		24	11/0.16	0.23	1.10	>=65	0.38	5.40	94.20
		22	17/0.16	0.23	1.30	>=65	0.38	5.60	59.40
		20	21/0.178	0.23	1.50	>=65	0.38	6.30	36.70
		18	34/0.178	0.23	1.80	>=65	0.38	6.90	23.20
UL20563 CUL  (Stranded)	4C	30	7/0.100	0.23	0.80	>=65	0.38	5.00	381.00
		28	7/0.127	0.23	0.90	>=65	0.38	5.20	239.00
		26	7/0.16	0.23	1.00	>=65	0.38	5.50	150.00
		24	11/0.16	0.23	1.10	>=65	0.38	5.90	94.20
		22	17/0.16	0.23	1.30	>=65	0.38	6.20	59.40
		20	21/0.178	0.23	1.50	>=65	0.38	6.70	36.70
UL20563 CUL (Stranded)	5C	30	7/0.100	0.23	0.80	>=65	0.38	5.20	381.00
		28	7/0.127	0.23	0.90	>=65	0.38	5.40	239.00
		26	7/0.16	0.23	1.00	>=65	0.38	5.50	150.00
		24	11/0.16	0.23	1.10	>=65	0.38	5.90	94.20
		22	17/0.16	0.23	1.30	>=65	0.38	6.50	59.40
UL20563 CUL  (Stranded)	6C	30	7/0.100	0.23	0.80	>=65	0.38	5.40	381.00
		28	7/0.127	0.23	0.90	>=65	0.38	5.80	239.00
		26	7/0.16	0.23	1.00	>=65	0.38	6.20	150.00
		24	11/0.16	0.23	1.10	>=65	0.38	6.50	94.20
