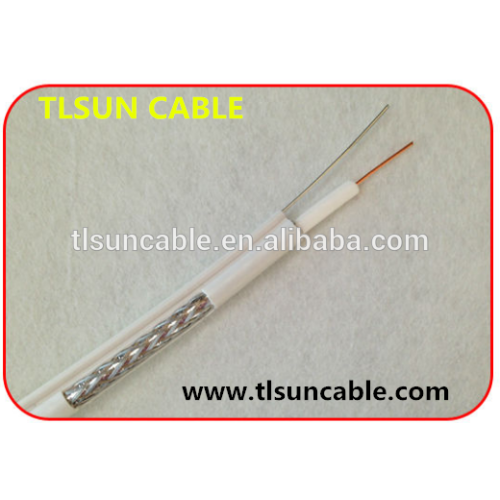

Coaxial Cable RG59 With Messenger

Specifications Coaxial Cable RG59 With Messenger

1.Factory Competitive price with good quality.

2.Time delive

     Coaxial Cable RG59 With Messenger   1. Description:

Items	coaxial rg59 with 2power
Model	RG59+2x0.5mm2
Inner conductor	OD	0.58±0.02mm
	Material	BC or CCS
Insulation	3.7±0.05mm solid PE
Shield	Wires		112*0.12mm
	Material		CCA braiding
	Coverage		90%
Jacket	OD		6.05mm±0.05mm
	Material		PVC
2 power wires	Conductor		2x0.5mm2
	Material		BC/CCA
	Insulation		1.7mm PE
	Jacket		5.0mm PVC
Impedance	75±3 ohm
Capacitance	67 pf/m±3
Velocity	83%
Attenuation (db/100m)	10MHZ		1.9
	50MHZ		4.8
	100MHZ		6.1
	200MHZ		9.6
	400MHZ		12.3
	700MHZ		17.1
	900MHZ		19.0
	1000MHZ		20.1
	1300MHZ		22.9
	1400MHZ		24.5
	1800MHZ		25.9
	2200MHZ		32.0
Package	305m/wooden reel
Delivery time	10 days

              3.our services:OEM&ODM are available     a.ODM services:   1).any color available   2).Your brand on cable available   3).Label with your logo   4).Your brand on pull out box ( company name and logo.)   5).Your brand  on carton ( company name and logo...)   6). RG6 coaxial cable specifications Made according to your specs.
