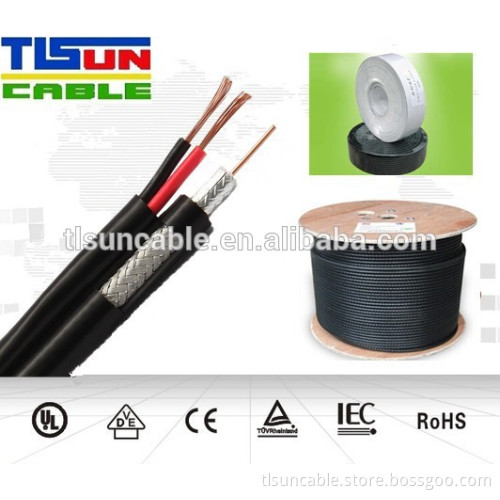

RG59 COAXIAL CABLE WITH POWER FOR CAMARA VIDEO SIGNAL DATA

Get Latest Price

Delivery Time:: 10 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

RG59 COAXIAL CABLE WITH POWER FOR CAMARA VIDEO SIGNAL DATA

TECHNICAL SPECIFICATION
CABLE TYPE			RG-59 WITH POWER CABLE
STRUCTURE			RG-59				POWER CABLE
Conductor	Composition (No./mm)		1/0.81mm				7/0.404mm
	Material		Bare Copper Wire				Stranded Bare Copper Wire
	Diameter (mm)		0.81±0.02mm				0.404±0.02mm
Insulation	Material		Gas Injected Foamed Polyethylene				PVC (BLACK&RED)
	Thickness (mm)		1.43mm				0.28mm
	Nom. Diameter (?)		3.66± 0.15mm				1.8±0.10mm
Shield	Material		Bare Copper Wire				-
	Construction		16*8/0.12mm				-
	Coverage		95%				-
	Diameter(mm)		0.12±0.008mm				-
	Material		PVC
Jacket	Diameter(mm)		6.15*11.45mm± 0.15mm
	Color		Black
Printing	RG59/U + 2/18 E244175 (UL) CL2
ELECTRICAL CHARACTERISTIC
Impedance		W		75 ±3
Insulation Resistance		MW / km		1000
Capacitance		pF/M		55 ±3
Attenuation		Frequency(MHz)		100	200	400		700	900	1000
		dB/100FT		2.71	3.94	5.85		8.42	9.83	10.20

3.our services:OEM&ODM are available a.ODM services: 1).any color available 2).Your brand on cable available 3).Label with your logo 4).Your brand on pull out box ( company name and logo.) 5).Your brand on carton ( company name and logo...) 6). RG6 coaxial cable specifications Made according to your specs.
