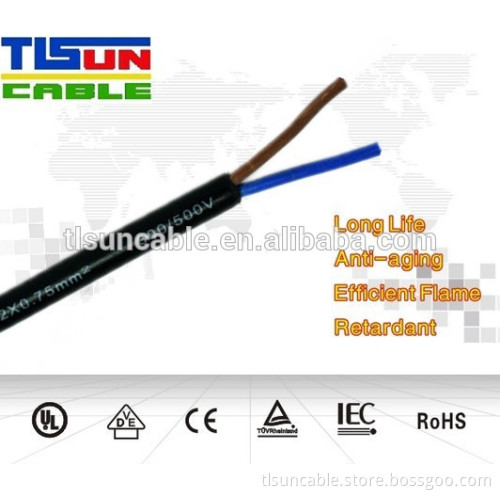

H05RN-F Flexible Heavy Duty Rubber Cable CAT5E

Specifications H05RN-F Flexible Heavy Duty Rubber Cable CAT5E

1)with CE certification

  H05RN-F Flexible Heavy Duty Rubber Cable CAT5E     Product Description                                                                   1)Application  Flexible cords suitable for use in domestic premises, such as kitchens and offices. Standards: BS6500, VDE0282 Conductor: Class 5 flexible plain copper conductors Insulation: Rubber compound Sheath: Rubber compound Sheath Colour: Black Voltage Rating: 300/500V Temperature Rating: -20°C to +60°C Minimum Bending Radius: 6 x overall diameter Conductor Identification: Brown, Blue, Green/Yellow

H05RN-F   H05RR-F
No. of conductor	Conductor		Insulation thickness (mm)	Sheath thicness (mm)	Overall diameter (mm)	Max Conductor resistance at 20(Ω/km)
	Normal area(mm2)	Constructio (No./mm)				Bare	Tinned
2	0.75	24/0.20	0.6	0.8	6.4±0.2	26.0	26.7
	1.0	32/0.20	0.6	0.9	6.8±0.2	19.5	20.0
	1.5	30/0.25	0.8	1.0	8.7±0.2	13.3	13.7
	2.5	49/0.25	0.9	1.1	10.2±0.3	7.98	8.21
3	0.75	24/0.20	0.6	0.9	6.8±0.2	26.0	26.7
	1.0	32/0.20	0.6	0.9	7.2±0.2	19.5	20.0
	1.5	30/0.25	0.8	1.0	8.54±0.2	13.3	13.7
	2.5	49/0.25	0.9	1.1	10.8±0.3	7.98	8.21
	4.0	56/0.30	1.0	1.2	13.3±0.4	4.95	5.09
	6.0	84/0.30	1.0	1.4	15.4±0.5	3.30	3.39
4	0.75	24/0.20	0.6	0.9	7.7±0.2	26.0	26.7
	1.0	32/0.20	0.6	0.9	8.0±0.2	19.5	20.0
	1.5	30/0.25	0.8	1.1	10.1±0.3	13.3	13.7
	2.5	49/0.25	0.9	1.2	12.1±0.4	7.98	8.21
	4.0	56/0.30	1.0	1.3	14.8±0.5	4.95	5.09
	6.0	84/0.30	1.0	1.5	17.0±0.5	3.30	3.39
5	0.75	24/0.20	0.6	1.0	8.5±0.2	26.0	26.7
	1.0	32/0.20	0.6	1.0	8.9±0.2	19.5	20.0
	1.5	30/0.25	0.8	1.1	11.0±0.3	13.3	13.7
	2.5	49/0.25	0.9	1.3	13.4±0.4	7.98	8.21

     \
