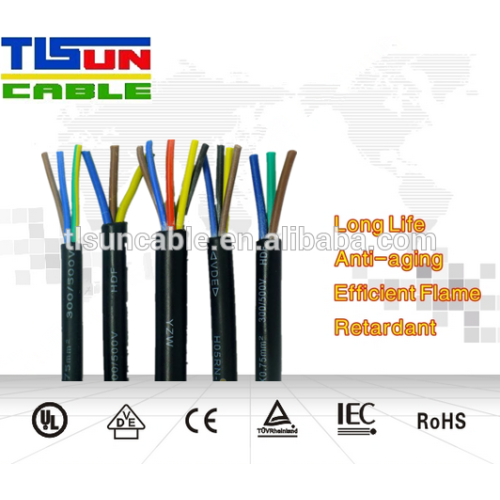

high temperature Rubber Cable,YCW Cable,Marine Cable

Specifications high temperature Rubber Cable,YCW Cable,Marine Cable

1)with CE certification

    high temperature Rubber Cable,YCW Cable,Marine Cable     Product Description                                                                   1)Application  Flexible cords suitable for use in domestic premises, such as kitchens and offices. Standards: BS6500, VDE0282 Conductor: Class 5 flexible plain copper conductors Insulation: Rubber compound Sheath: Rubber compound Sheath Colour: Black Voltage Rating: 300/500V Temperature Rating: -20°C to +60°C Minimum Bending Radius: 6 x overall diameter Conductor Identification: Brown, Blue, Green/Yellow

H05RN-F   H05RR-F
No. of conductor	Conductor		Insulation thickness (mm)	Sheath thicness (mm)	Overall diameter (mm)	Max Conductor resistance at 20(Ω/km)
	Normal area(mm2)	Constructio (No./mm)				Bare	Tinned
2	0.75	24/0.20	0.6	0.8	6.4±0.2	26.0	26.7
	1.0	32/0.20	0.6	0.9	6.8±0.2	19.5	20.0
	1.5	30/0.25	0.8	1.0	8.7±0.2	13.3	13.7
	2.5	49/0.25	0.9	1.1	10.2±0.3	7.98	8.21
3	0.75	24/0.20	0.6	0.9	6.8±0.2	26.0	26.7
	1.0	32/0.20	0.6	0.9	7.2±0.2	19.5	20.0
	1.5	30/0.25	0.8	1.0	8.54±0.2	13.3	13.7
	2.5	49/0.25	0.9	1.1	10.8±0.3	7.98	8.21
	4.0	56/0.30	1.0	1.2	13.3±0.4	4.95	5.09
	6.0	84/0.30	1.0	1.4	15.4±0.5	3.30	3.39
4	0.75	24/0.20	0.6	0.9	7.7±0.2	26.0	26.7
	1.0	32/0.20	0.6	0.9	8.0±0.2	19.5	20.0
	1.5	30/0.25	0.8	1.1	10.1±0.3	13.3	13.7
	2.5	49/0.25	0.9	1.2	12.1±0.4	7.98	8.21
	4.0	56/0.30	1.0	1.3	14.8±0.5	4.95	5.09
	6.0	84/0.30	1.0	1.5	17.0±0.5	3.30	3.39
5	0.75	24/0.20	0.6	1.0	8.5±0.2	26.0	26.7
	1.0	32/0.20	0.6	1.0	8.9±0.2	19.5	20.0
	1.5	30/0.25	0.8	1.1	11.0±0.3	13.3	13.7
	2.5	49/0.25	0.9	1.3	13.4±0.4	7.98	8.21

     \
