profibus DP Cable

profibus DP Cable       A range of single pair Profibus cables for process and field communication in cell networks. The Profibus protocol is widely used for production and process automation applications providing transmission rates up to 12Mbits/sec.

The Profibus cable is an alternative to Belden 3079A and is available in PVC, PUR, FEP, (LSHF) low smoke halogen free, external duct grade or SWA (steel wire armoured) versions.

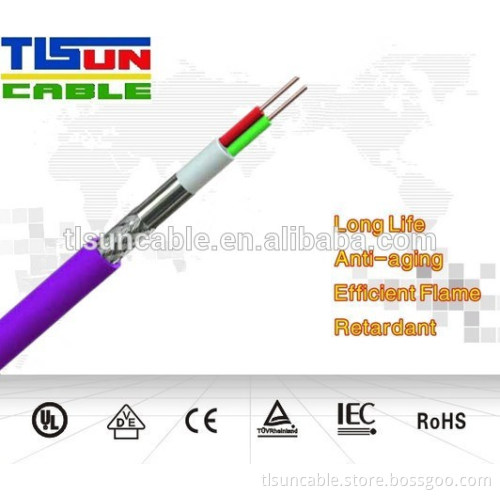

As a cable supplier in the UK, FS Cables offer a wide range of data and bus cables from stock. Please see the navigation menu for more information. Construction - Static Cables Plain copper conductors 0.64mm (22AWG), foamed PE with a hard skin insulation, synthetic bedding, aluminium foil screen & tinned copper wire braid – 60% optical coverage, thermoplastic or thermosetting sheath. Construction - Dynamic Cables Plain copper conductors 0.25mm² Foamed PE with a hard skin insulation, cores laid up with fillers and a polyester tape, aluminium foil screen & tinned copper wire braid – 60% optical coverage, polyurethane (PUR) sheath.
