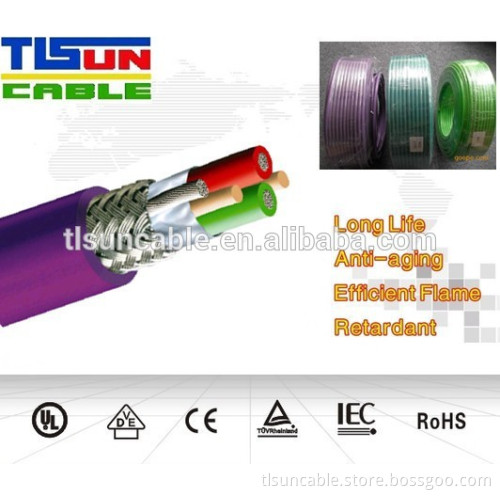

ROSH Antiflaming Profibus DP TC multi pair shielding bus cable

ROSH Antiflaming Profibus DP TC multi pair shielding bus cable   ABOUT US:   Product Description                                                                   China best price siemens Profibus cable     Conductor diameter (mm):1x2x0.64
Cu content kg/km:26.3;
Outer diameter approx.(mm):8.0
Weight approx.kg/km:64.0 Application Connecting cable for stationary installation in dry environments at the process level. Screening ensures reliable use in EMI environments. (Special characteristics: reduced fire propagation,low smoke emission,low fire load,no corrosive gas).   Standards IEC 60332-3,IEC 60754-1,IEC 60754-2   Construction Conductor:Bare Cu conductor Insulation:Expanded PE,halogen-free Insulation color:Red and green Core twisted in layers,with optimal lay lengths Screening:Overall screening with composite Al foil,metal layer on the outside,and tinned Cu braided screening Outer sheath:Halogen-free compound,FRNC, flame retardant Marking:Manufacture name (trademark) and type, Production year/week or batch number ,Metre-marked.   Technical Temperature range - 25° C to + 60°C Peak operating voltage:max.100V Test voltage:3600V/3sec Conductor loop resistance:max.110 Ohm/km Insulation resistance:≥16000MOhm x km Mutual capacitance at 1 kHz:approx 28.0 nF/km Wave impedance: Nominal value: 150 Ohm,3 to 20 MHz:150 +/- 15 Ohm,38.4 kHz:185 +/- 18.5 Ohm,9.6 kHz:270 +/- 27 Ohm Attenuation:at 16 MHz: <42 dB/km,at 4 MHz:<22 dB/km,at 38.4 kHz:<4 dB/km,at 9.6 kHz:<2.5 dB/km Bending radius:min.150mm Flame retardant:To IEC 60332-1 Halogen-free:To IEC 60754-1 Corrosiveness of combustion gas:To IEC 60754-2 Please do not hesitate to contact us if you need the product detail or special product     Siemens Profibus  NET and S7 S5 PLC Programming cable   we can supply major SIEMENS A&D products including Siemens   Profibus  NET and cable S7 S5  PLC
Profibus NET
1 Profibus Bus cable,Purple PVC jacket, unshielded twisted pair 6XV1 830-0EH10
  2 Profibus Bus connector ,900 angle round, non-programming port 6ES7 972-0BA12
3 Profibus Bus connector ,900 angle round, with programming port 6ES7 972-0BB12
  4 Profibus Bus connector ,350 angle round, non-programming port 6ES7 972-0BA41
5 Profibus Bus connector ,350 angle round, with programming port 6ES7 972-0BB41
  6 Profibus Bus connector ,Fast Terminal Blocks,900 angle round, non-programming port 6ES7 972-0BA51
7 Profibus Bus connector ,Fast Terminal Blocks, 900 angle round, with programming port 6ES7 972-0BB51
  8 Isolated terminal, 900 angle round, non-programming port
9 BC 293, CPU 22X battery box 6ES7 291-8BA20
  10 Plus memory card (a capacity of 64K) 6ES7 291-8GF23
11 20 pin linker (S7-300)6ES7 392-1AJ00-0AA0
  12 40 pin linker (S7-300) 6ES7 392-1AM00-0AA0
13 S7-300 Installation guide(160 mm) 6ES7 390-1AB60-0AA0
  14 S7-300 Installation guide(482 mm)6ES7 390-1AE80-0AA0
15 S7-300 Installation guide(530 mm)6ES7 390-1AF30-0AA0
  16 S7-300 Installation guide(830 mm) 6ES7 390-1AJ30-0AA0
