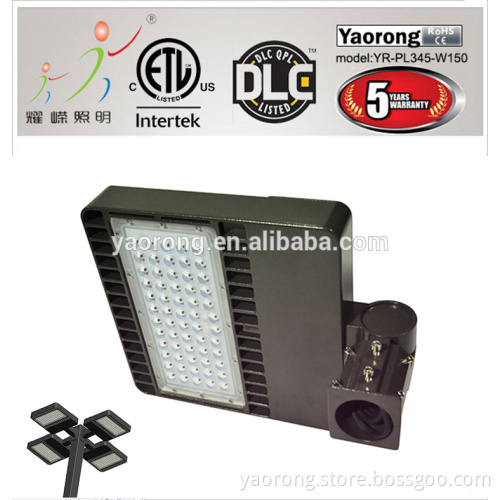

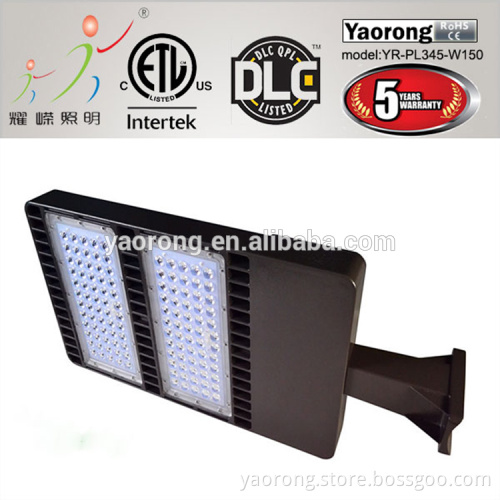

Yaorong factory ETL DLC CE 120lm/w Ultra slim led parking lot lighting with optional LENS

Yaorong factory ETL DLC CE 120lm/w Ultra slim led parking lot lighting with optional LENS LED parking lot lighting Specification: 1)Bracket for square pole or round pole
2)24W 48W 80W 100W 150W 200W 300W
3)Dialux simulation and IES.file
4)ETL(4009701) and DLC approval 6)Lighting distribution curve: 90*120°/90°/120°/85*135°/90*140  7)Type Item: Type II, Type III, Type IV 8)ETL and DLC approval LED wall pack, LED high bay light, full cut-off LED wall pack, LED flood light and LED street light also provided 9)Can be with photocell sensor and motion sensor.

Item(X=A.B.C.D.E.F)	CCT	CRI	Lumions Flux	System Power	Product Size(mm)
YR-PL275-W024-A	3000-7000K	≥70	2400±600LM	24W	275*364*176
YR-PL275-W024-B	3000-7000K	≥70	2400±600LM	24W	275*427*90

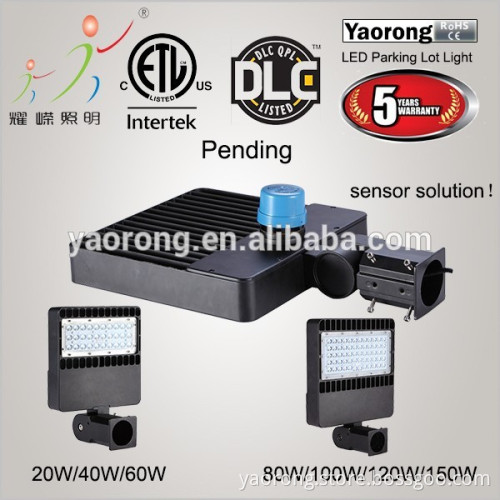

YR-PL275-W024-C	3000-7000K	≥70	2400±600LM	24W	275*434*90
YR-PL275-W024-D	3000-7000K	≥70	2400±600LM	24W	275*425*144
YR-PL275-W048-X	3000-7000K	≥70	4800±600LM	48W	275*364*176
YR-PL345-W80-X	3000-7000K	≥70	9600±600 LM	80W	433*343*176
YR-PL345-W100-X	3000-7000K	≥70	11800±600 LM	100W	433*343*176
YR-PL345-W150-X	3000-7000K	≥70	16800±600 LM	150W	433*343*176
YR-PL670-W200-X	3000-7000K	≥70	21800±600 LM	200W	744*343*144
YR-PL670-W300-X	3000-7000K	≥70	33800±600 LM	300W	744*343*144
Input Voltage: AC 100V~277V Efficiency of power supply>0.9  Storage Temperature: –40 ~ 50°C

      LED parking lot lighting Parameter:

LED parking lot lighting Features: 1.Module lens design make the lamp with well suited lighting distributing for LED parking lot lighting.   2.Hollow out heat sink design make the lamp weight lighter and have good heat dissipation.   3.Installation angle -90--+90 is adjustable.   4.Good-looking appearance. Uses chips. lamp luminous efficiency reaches 120lm/w.,   5.  6 kinds of installation brackets.   6.Ultra slim design height only 70mm.   Factory description:   We have our own mould factory,die-casting factory;LED packing factory,so we can provide a whole series of service and products to you        And also we specialzie only in 4 seies: LED high bay light,LED flood  light;LED street light;LED wall packs;

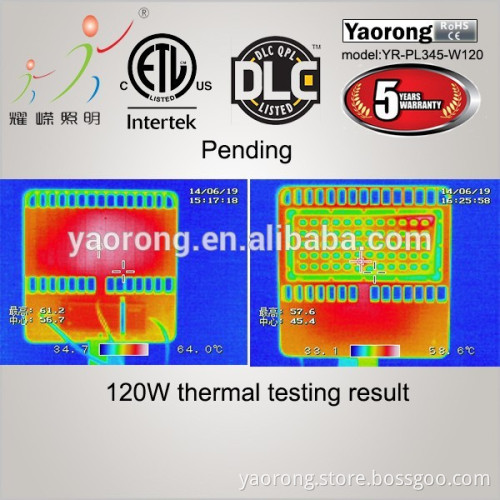

LED parking lot lighting detailed: ♦ Super thermal management.Optimum heat-sink design,Solve thermal issue radically. ♦ Percision lighting distribution.Suitable for various installation height. ♦ Symmtrical LED luminaire for high ceiling inatallion. ♦ quality Samsung chip LEDs and Meanwell driver applied. ♦ ETL(4009701) and DLC CE certified led parking lot lighting
♦ Reduced energy consumption and operating costs by up to 80%.
♦ Maintenance free operation - lasts up to 10 times longer than conventional lighting
♦ Unique design with anodized silver housing for cooler operation and extended lamp life.
LED parking lot lighting Dimensiom:

80w-150w Type A and  160w-300w Type D

Pole Diameter:  63MM
  We have our engineering and mould department , we can R & D and   produce mould according to customer's requirement.

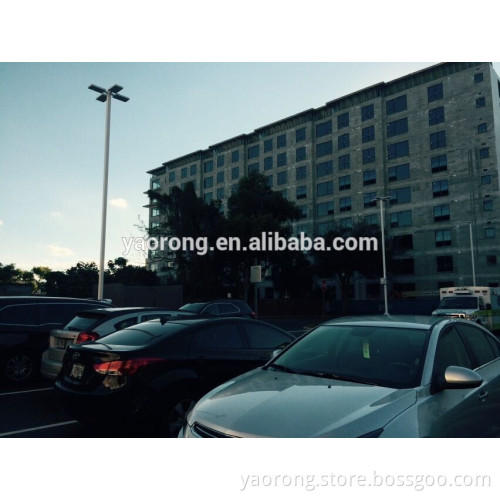

LED parking lot lighting ETL(4009701) DLC CE approval and Application:Project case: ADDRESS: 2547 North Expressway 83, Brownsville, Texas 78520 USA     Description: shoe box area light installed in Nissan car dealership in USA. It's installed at the height of 25',and it's to replace 1000W. (120 pcs 200W and 233 pcs 300W are used)

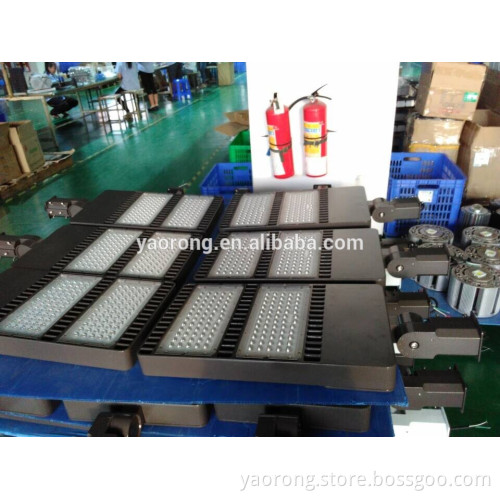

Our company information:
FAQ Why do you choose Yaorong? 1.  8 years experience on LED lighting manufacturing. 2.  Establish long term stable cooperation with many renowned enterprises. 3.  Professional technology team. 4.  Self-reliant in LED light source. 5.  Strict procedure quality supervising and bum-in period. 6.  Complete Quality Control System. 7.  Good after-sales service.   Skype: allen-yrled tell:+86 13808852420 QQ:2355279115
