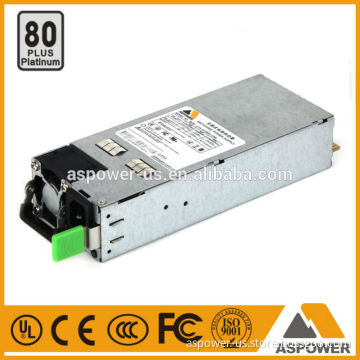

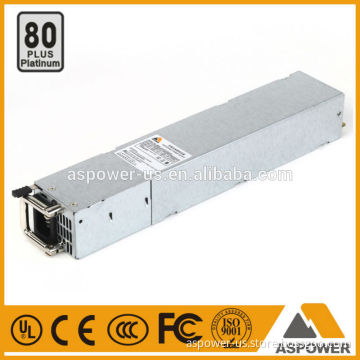

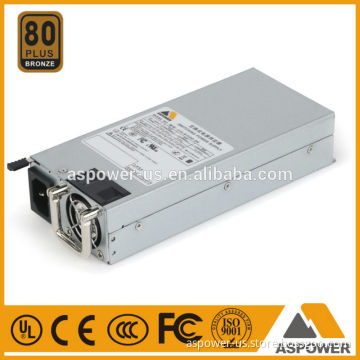

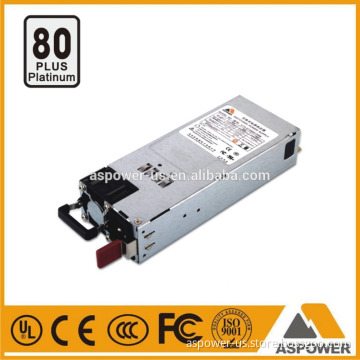

isoluted switching power supply module/high power wireless module

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

Module No	Watt
U1A-M20650-DR	650
U1A-M20550-DR	550
U1A-M20450-DR	450
U1A-M20350-DR	350

Voltage	90V~240Vac
Frequency	47Hz/63Hz
EMI	IEC-6100-3-2-FCC CISPR22(EN55022)
EMS	EN61000-4-2ESD/EN61000-4-4-EFT/ EN610-4-5 Surge

Specfications:

Efficiency	>88% Typical Load at 115Vac
Power Good Signal	On delay 100mS to 500mS
Hold Time	16mS Minimum at 115Vac 80% Load
AC fail Hold up time	600mS@115V Full Load
Rise Time	20mS Maximum at 115V Full Load
Output Protection	Short,OPP,OVP,OTP Remote ON/OFF Control
Temperature Range	Operating 0 ℃ ~60 ℃/Storage -20 ℃ ~+80 ℃;The power supply is for chassis assembly only and is not allowed to be operated as stand alone component. Final assembly has to comply with corresponding EMC and safety regulations.

Company Information ASPOWER PRODUCTION Specification: More than 30 various series of products, Power ranges from 60W-6000W AC Voltage Input:90-264V Low-votage DC Input:18-72V High-votage DC Input:150-380V Certificate Approval:CCC,CE,FCC,CB,UL Standard Capacity: 52000PCS/month(below 1200W redundant power module) 26000SET/month(2U 1+1 redundant power) Planning Capacity:We can arrange exclusive production line for the VIP customers in mass production. Factory Showing
