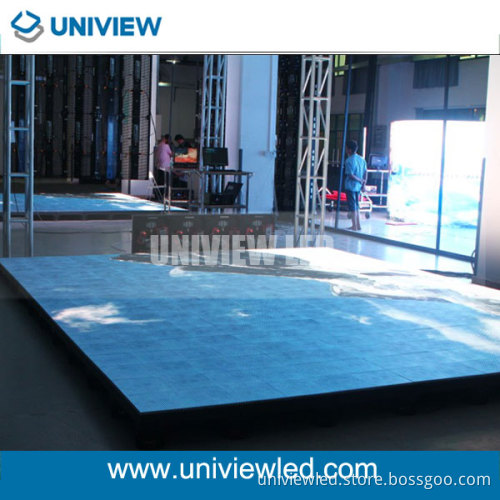

Outdoor pixel10.42 led dance floor

Specifications Small size cabinet, easy for shaping

Seamless connection

Great bearing capacity, over 1.5 ton/sqm

Easy install and dismantle

  UNIVIEW Beon SERIES
BEON Series: Led dance floor is one of the best solutions for video floor, a real full color led screen "be on" the floor.
Unlike the traditional led dance floor, BEON Series can be installed without glass or acrylic, or frame.
High resolution & brightness availble for HD video.
led dance floor Key features:
1. Pixel pitch: 10.42mm, SMD3535, brightness 3000 / 5000nits
2. 2000 kg load burden per square meter
3. High strength structure
4. Fan-less optimized natural cooling design
5. Anti-shock inside wiring, guarantee stable running
6. Multiple Use, can be hanged as normal led wall
6. IP65 front / back
7.CE/EMC/CSA Certify
TYPICAL APPLICATIONS
Events
Exhibition
Shopping mall
Staging
TV Studio

Item	Specification
Pixel Pitch	10mm
LED Configuration	SMD3535-N
Pixel Density	9216/m²
Module Size	250mm × 250mm
Unit size	500(L)*500(W)*82(T)
power Consumption	150/50
Scan mode	1/4
Brightness	3000nits/5000nits
Gray Scale	14bits
Cabinet weight	13.7KG
Protection Rating	IP65
View angle	H160/V160
Loading capacity	2000kg

2013 NEW Arrivals led dance floor Uniview OBEN series.
