China waterproof best Color consistency steel case low light fades SMD 5630 injection business letters high power modules

Specifications The best Color consistency in LED light industry

High brightness

Easy Installation

Totally waterproof

Friendly environment

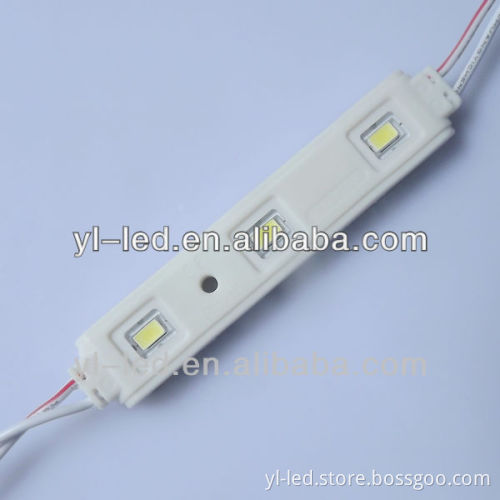

Specifications 1. SMD 5630 injection high power LED modules 2. DC12V, 100mA, 1.2W
3. Size:L84mm*W16mm*H6 mm
4. With CE,RoHS
5. Warranty: 2 years     3 chips SMD 5630 injection high power LED modules  Applications:   1. Channel letter backlighting 2. Advertisement sign backlighting, backlight or edge lighting for sign 3. Advertisement light box and billboard backlighting 4. Architectural lighting for window ,archway ,canopy and corridor

Features: ·Highest Brightness With famous chip,high brightness,low light fades,no shadow.   ·Easy Installation  High power LED modules can be easily installed with 3M double-sided sticking tape.   ·Life Span  High power LED modules have a life time of more than 50,000 hours.   ·Totally waterproof  Complete injection, covered with Epoxy resin, with IP67 protection degree,  high power LED modules can operate normally in cloudy, rainy, desert, and snowy weather conditions or pool. The LED is totally covered by resin.   ·Friendly environment Pb free. With SGS CE/RoHS certificates, Waterproof high power LED modules are up to 60% more energy efficient than neon. ·Safe Application Low voltage DC12V, safety and stable. Free maintenance

   High power LED modules aging test:        Detailed description:

Item No.	YL8416ZTF-3W5630	YL8416ZTF-3B5630	YL8416ZTF-3G5630	YL8416ZTF-3R5630	YL8416ZTF-3RGB5630
Size	L84mm*W16mm*H6mm
LED Quantity	3pcs LED 5630
Input Voltage	DC Input 12V
View Angle	120  Deg.
Current	100mA
Power	1.2W
Connector	UL 1007 18# Red White Wire   Length 100mm Red Anode White Cathode
Group	20PCS
Max. Group	≤20PCS
Base	PVC anti-fire material, Beige, complete Injection
Life	50 000 Hours
Ambient Temperature	-40°C- 60°C (-40°F~140°F)
Warranty	2 years
Weight	13.7g/PC
IP Grade	IP67
