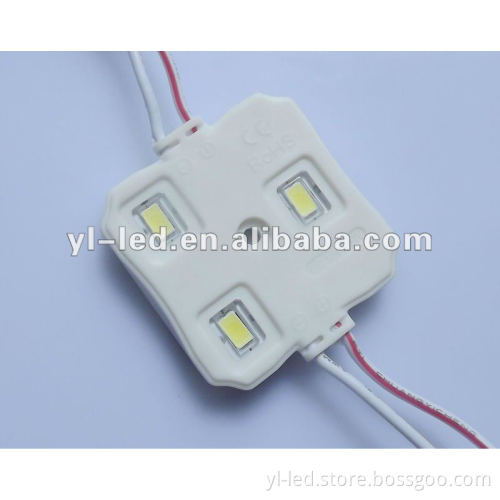

Square injection 3SMD 5630 led module with lens

Get Latest Price

Delivery Time:: 5 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

Specifications 1.Square injection 5630 led module with lens;

2.Size:40*37*5.7mm;

3.100mA,1.2W,67LM;

4.With 3M tape;

5.Warranty: 2 years.

Square injection 3SMD 5630 led module with lens Product Applications:
5630 SMD LED Modules with big light angle,no shadow,low light falling,easy to install and free maintainess;widely used in three-dimensional light words,restaurant, hospital, grocery and casino.


Features: ·Highest Brightness With famous chip,high brightness,low light failing,no shadow. ·Easy Installation LED Modules can be easily installed with 3M double-sided sticking tape . ·Life Span LED Modules have a life time of more than 50,000 hours. ·Totally waterproof With IP65 protection degree, LED Modules can operate normally in cloudy, rainy, desert, and snowy weather conditions and pool. The LEDs are totally covered by resin. ·Friendly environment Pb free. With CE/RoHS/SGS certificate, Waterproof LED Modules are up to 60% more energy efficient than neon. ·Safe Application Low voltage DC12V, safety and stable. Free maintenance

Features:

·Highest Brightness

With famous chip,high brightness,low light failing,no shadow.
·Easy Installation
LED Modules can be easily installed with 3M double-sided sticking tape .
·Life Span
LED Modules have a life time of more than 50,000 hours.
·Totally waterproof
With IP65 protection degree, LED Modules can operate normally in cloudy, rainy, desert, and snowy weather conditions and pool. The LEDs are totally covered by resin.
·Friendly environment
Pb free. With CE/RoHS/SGS certificate, Waterproof LED Modules are up to 60% more energy efficient than neon.
·Safe Application
Low voltage DC12V, safety and stable. Free maintenance

Detailed description:

Item No.	YL4037ZTF-3W5630
Product Size	L40mmW37mmH5.7mm
LED Quantity	3pcs SMD 5630
Input Voltage	DC Input 12V
View Angle	120 Deg.
Current	100 mA
Power	1.2W / module
Luminance	67LM
Color	White
	3000-15000K

Connector	UL 1007 18# Gray White Wire Length 100mm Gray Anode White Cathode
Group	20PCS
Max. Group	≤20PCS
Base	ABS, milk white, anti-fire material
Life	50 000 Hours
Ambient Temperature	-40°C- 60°C (-40°F~140°F)
Warranty	2 years
IP Grade	IP67
