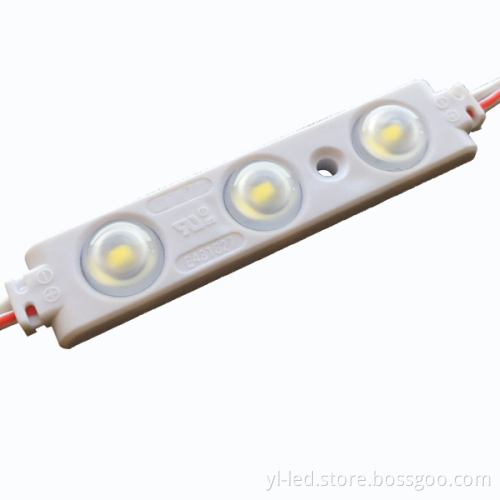

Samsung Led Module , 5630 3 LEDs Module, UL LED module for signage backlight

  Samsung Led Module ,  5630 3 LEDs Module, UL LED module for signage backlight          Product Description    1. Product photo     Adopting high brightness sorted SMD5630, low light failing, no shadow.          15 years experiences make sure the good color consistency between different batches.                                     • ONE color bin LEDs.                       • Bin-sorted very tightly LEDs.                       • Batch-to-Batch color match. PVC injection housing producing process creat IP65 waterproof level, The LED Modules can operate normally in cloudy, rainy, desert, and snowy weather conditions.   Adopting good solder paste, The modules are Pb free. With CE/RoHS/SGS certificates.  LED Modules have a long life time of more than 50,000 hours. Waterproof LED Modules are up to 60% more energy efficient than neon.   Low voltage DC12V, safety and stable. Free maintenance.     LED Modules can be easily installed with double-stick 3M tape. DIfferent optioins are available.     2. Technical data

Item No.	YL6914ZTF-3W5630
Size	69*14*4.5MM
LED Quantity	3pcs SMD5630
Input Voltage	DC Input 12V
View Angle	160  Deg.
Current	100 mA
Power	1.2W / module
Luminance	100-120LM
Color	warm white 2800K, day white 5000K, cool white 6500K, cold white 10000K
Connector	Red/White Wire   Length  100mm Red Anode White Cathode
Group	20PCS
Max. Group	≤20PCS
Base	PVC anti-fire
Life	50 000 Hours
Ambient Temperature	-40°C- 60°C (-40°F~140°F)
Warranty	3years
IP Grade	IP65

  3. Product Application    SMD5630 LED module with lens  can be widly used for Medium to large channel letter, vacuum- thermoform letter, light box, 3D letters &shapes – illuminating returns, face or halo effect on background         Company Information     Certifications CE, RoHS       Packaging & Shipping             Our Services 1) Inquiry replied within 12 working hours    2) Customized design available; OEM&ODM welcomed    3) Exclusive and unique solution can be provided   4) Special discount and protection of sales area provided to our distributor.      FAQ 1) MOQ :   MOQ 1000PCS,QTY<1000PCS handle as sample order.   2) Payment :  TT, Westerunion, Paypal, L/C    3) Delivery time: 3-15 working days according to Qty.    4) Others : customer-made lighting colors, customer designs are available. Other questions, Please send email to us or call +86 - 0755- 2704 5110 - 808.          Similar products    Item No.: YL 8316ZTF-3W2835     Power: 1.2W, DC12V    Lumen:100-120lm
