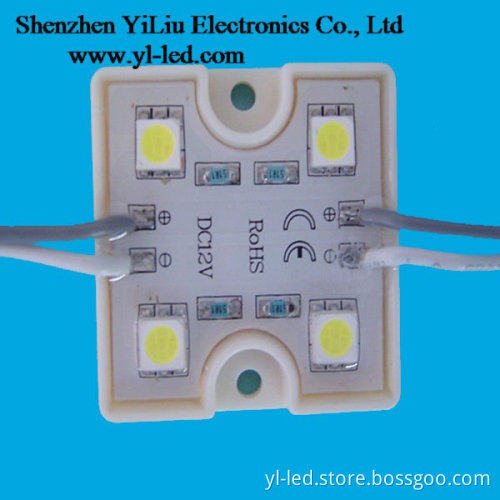

high power 5050 SMD led module ROHS

Get Latest Price

Delivery Time:: 5 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

Specifications 1. 4pcs 5050 led module

2.high power:1.44W

3.high brightness:68LM

4.CE&ROHS approval

5.low price led module

high power 5050 SMD led module ROHS Product Applications 5050 SMD LED Modules with big light angle,no shadow,low light falling,easy to install and free maintainess;widely used in three-dimensional light words,restaurant, hospital, grocery and casino.

Features
·Highest Brightness

With famous chip,high brightness,low light failing,no shadow.
·Easy Installation
LED Modules can be easily installed with 3M double-sided sticking tape and .

·Life Span
LED Modules have a life time of more than 50,000 hours.
·Totally waterproof
With IP65 protection degree, LED Modules can operate normally in cloudy, rainy, desert, and snowy weather conditions and pool. The LEDs are totally covered by resin.
·Friendly environment
Pb free. With CE/RoHS/SGS certificate, Waterproof LED Modules are up to 60% more energy efficient than neon.
·Safe Application
Low voltage DC12V, safety and stable. Free maintenance

Item No.	YL3333F-4W5050	YL3333F-4B5050	YL3333F-4G5050	YL3333F-4Y5050	YL3333F-4R5050
Size	L36mmW36mmH6mm
LED Quantity	4 PCS LED 5050
Input Voltage	DC Input 12V
View Angle	120Deg.
Current	120mA	120mA	120mA	120mA	120mA
Power	1.44W	1.44W	1.44W	1.44W	1.44W
Luminance	68LM	12.6LM	48.5LM	17.9LM	21.6LM
Color	White 3000-100000K	Blue	Green	Yellow	Red
Connector	UL 1007 20# Gray white wire length 100mm Gray Anode White Cathode
Group	20PCS
Max. Group	≤20PCS
Base	Off-Whtie PS
Life	50 000Hours
Ambient Temperature	-40°C- 60°C (-40°F~140°F)
Warranty	24Months
Weight	9g/PCS
IP Grade	IP65
