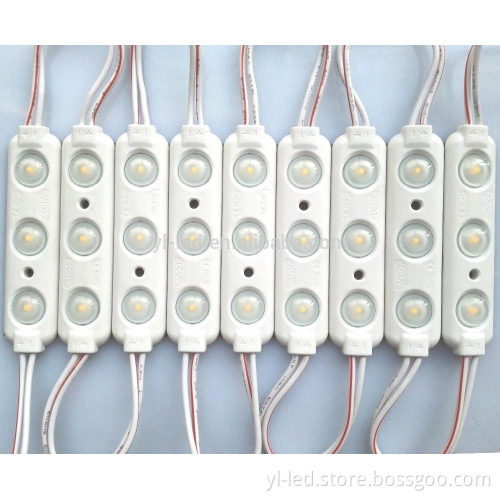

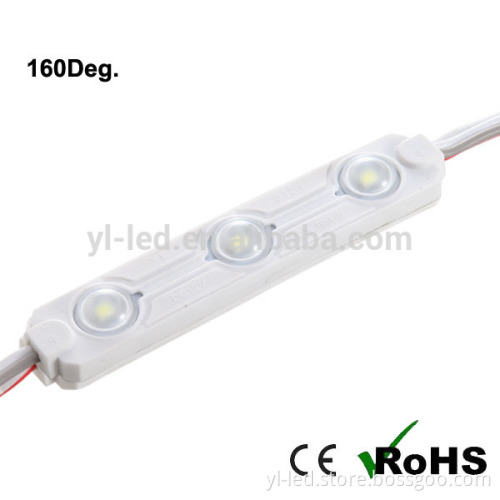

Wattage 1.5w 150Lm injection SMD LED module with lens

 Wattage 1.5w 150Lm injection SMD LED module  with lens      Product Description    Prdouct Show          Prdouct Parameter and Features

Item No.	YL6917ZTF-3W2835H
Size	L69mm*W17mm*H5.8mm
LED Quantity	3PCS SMD2835 LED
Input Voltage	DC Input 12V
View Angle	160 Deg.
Current	125mA
Power	1.5W
Luminance	115-150LM
Color	White 2800K-100000K	Blue	Green	Red	Yellow
Connector	UL 2468 18# Red White Wire Length 80mm Red Anode White Cathode
Group	50PCS
Max. Group	≤50PCS
Base	Milk white ABS
Life	50 000 Hours
Ambient Temperature	-40℃- 60℃ (-40℉~140℉)
Warranty	3years
Weight	8.2g/PC
IP Grade	IP65

           YL8316ZTF-3W5630     YL8316ZTF-3W2835           Remarks: 1. The thickness of the electric wire is decided by the possible maximum current, maximum power and the length of the main electric wire (suggested length is not more than 5 meters). 2. The two side end electric wire of the LED module cluster (20pcs) must be protected from water. 3. Electrostatic touch and live line work is strictly prohibited. 4. This kind of LED module is 20pcs cascade at most. 5. The power supply is suggested to have safety certificate. 6. Please connect the LED modules according to Anode and Cathode, Red wire Anode and White wire Cathode. 7. Fixed mode: the screw is suggested to be Φ2.6-Φ3.0. 8. Pressing the surface of the SMD LED is prohibited. 9. While on installation, if you use glass sealant, Neutral glass silicone sealant is needed, and please clean the glass sealant in time if it is pasted onto the surface of the SMD LED by carelessness.      Application          (Injection LED modules China with big light angle, no shadow, low light fades, easy to install and free maintenance; widely used in three-dimensional light words, house,office, advertisement restaurant,hospital, grocery or casino.)         Production and Quality Control         Our All Led Module      Our services & FAQ  Why Choose Us?    FAQ:   Q1: Do you have any MOQ limited for order?
A: Our MOQ for order is 100pcs.   Q2:Can I have sample to test? A:Yes,we are pleased to supply samples to test and check our quality.    Please note, free samples within 5PCS. And buyer pay for shipping cost.   Q3: What’s the delivery time?
A:Samples shipped within 3days; Bulk order shipped 3-15days.   Q4: How do you ship the goods?
A:by air/by sea/by road   Q5: Do you offer guarantee for your products?
A: Yes, we offer 2 years guarantee for the products.   Q6: What's the payment method you accept?
A: T/T;Western Union;Paypal   Our services:   1.Your inquiry related to our products or prices will be replied in 24hrs.  2.Any your customized lightings we can help you to design and put into product.  3. Distributorship are offered for your unique design and some our current models.  4. Customers will be keep informed on every progress of their order’s production, knowing order’s      condition with time on schedule.  5. With first cooperation, customers will know our service and quality standard. After this we will      contact for the feedback, also welcome any suggestion for improvement for both our     service and quality.   Our Factory   Our Markets           Certification           Packaging & Shipping, Payment            Our Team
