China waterproof best Color consistency low light fades letters to chart lighting fixture advertising slogan LED module

Specifications The best Color consistency in LED light industry

High brightness

Easy Installation

Totally waterproof

Friendly environment

Specifications 1.With famous chip,
2.high brightness,
3.low light fades,

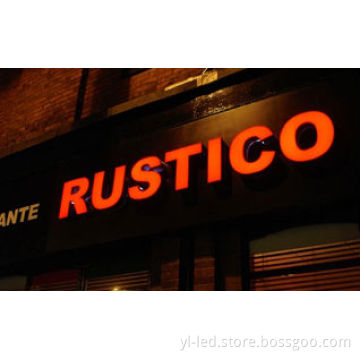

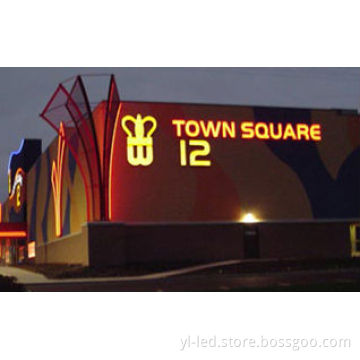

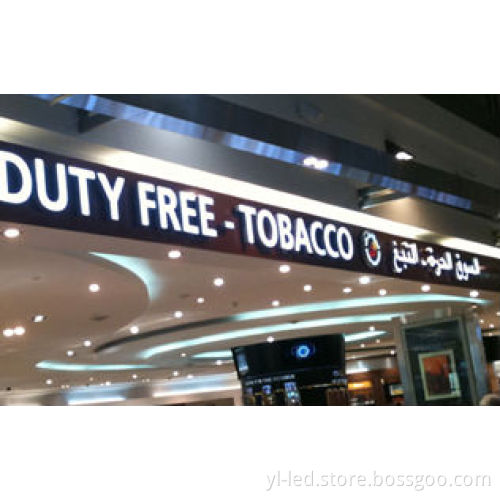

4.no shadow.     Product Applications: SMD rgb led letter lamp lighting fixture module with big light angle,no shadow,low light fades,easy to install and free maintenance;widely used in three-dimensional light words,restaurant, hospital, grocery or casino.     Features:

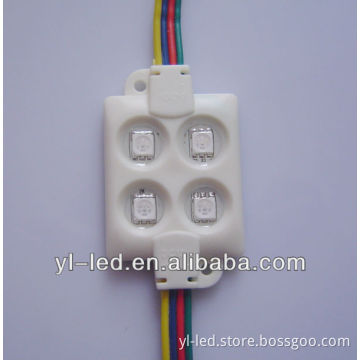

·Highest Brightness  Rgb lighting fixture led letter lamp module with famous chip,high brightness,low light fades,no shadow.
·Easy Installation
Rgb LED lighting fixture letter lamp Modules can be easily installed with 3M double-sided sticking tape.   ·Life Span
Rgb LED lighting fixture letter lamp Modules have a life time of more than 50,000 hours.
·Totally waterproof
With IP67 protection degree, Rgb LED lighting fixture Modules can operate normally in cloudy, rainy, desert, and snowy weather conditions or pool. The LED is totally covered by resin.
·Friendly environment
Pb free. With SGS CE/RoHS certificates, Waterproof rgb LED lighting fixture Modules are up to 60% more energy efficient than neon.
·Safe Application   Low voltage DC12V, safety and stable. Free maintenance         Detailed description:

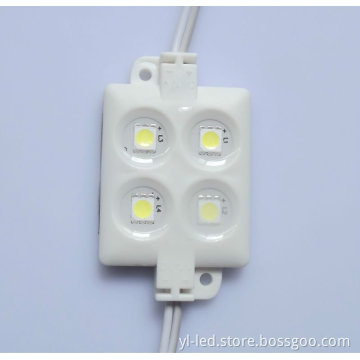

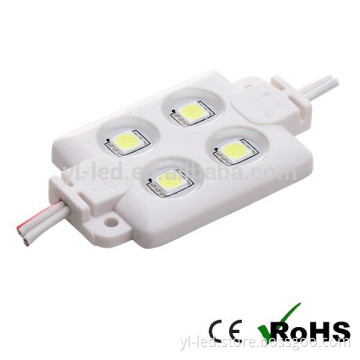

Item No.	YL5535ZF-4W5050	YL5535ZF-4B5050	YL5535ZF-4G5050	YL5535ZF-4Y5050	YL5535ZF-4R5050
Size	L55mm*W35mm*H6mm
LED Quantity	4PCS  LED 5050
Input Voltage	DC Input 12V
View Angle	120 Deg.
Current	80mA	80mA	80mA	80mA	80mA
Power	0.96W	0.96W	0.96W	0.96W	0.96W
Luminance	69.6LM	12.1LM	39LM	18.3LM	20.6LM
Color	White 3000-10000K	Blue	Green	Yellow	Red
Connector	UL 2468 20# Red White Wire   Length  100mm Red Anode White Cathode

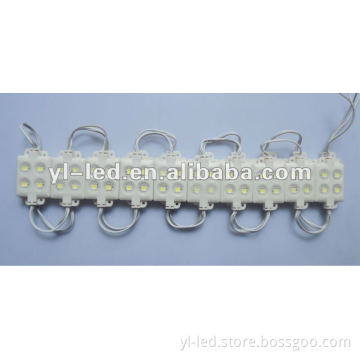

Group	20PCS
Max. Group	≤20PCS
Base	Beige PVC
Life	50 000 Hours
Ambient Temperature	-40°C- 60°C
Warranty	24 Months
Weight	11.9g/PC
IP Grade	IP67
