wholesale 160 Degree injection 3 points SMD 2835 high power led module , 0.72W high power led module for neon letter
- Delivery Time:
- 3 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Place of Origin: | Guangdong, China (Mainland) |
---|
Product Description
Product Description

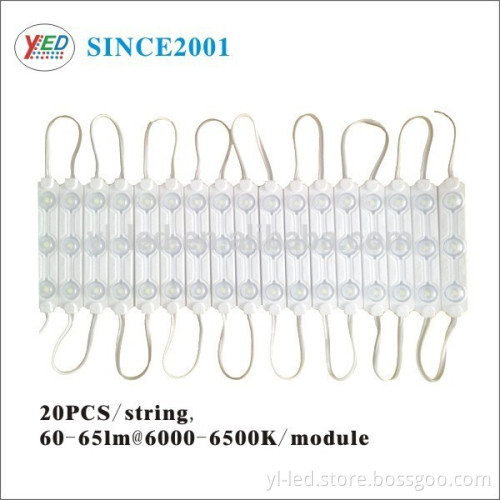

wholesale 160 Degree injection 3 points SMD 2835 high power led module , 0.72W high power led module for neon letter / -- YL8316ZTF-3W2835 Product Description 1. Product photo

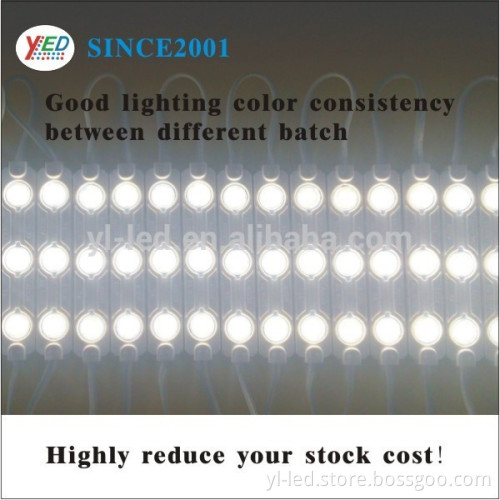

15 years experiences make sure the good color consistency between different batches, and reduce the storage cost. PVC injection housing producing process creat IP65 waterproof level, The LED Modules can operate normally in cloudy, rainy, desert, and snowy weather conditions. Adopting good solder paste, The modules are Pb free. With CE/RoHS/SGS certificates. LED Modules have a long life time of more than 50,000 hours. Waterproof LED Modules are up to 60% more energy efficient than neon. Low voltage DC12V, safety and stable. Free maintenance.
LED Modules can be easily installed with double-stick 3M tape. DIfferent optioins are available. 2. Product chart
3.Technical data

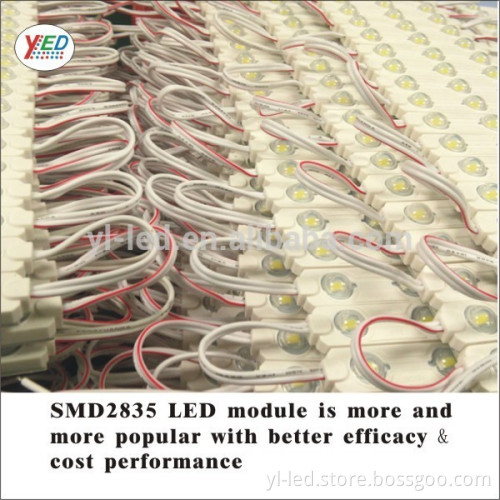

4. Product Application SMD2835 LED module with lens can be widly used for Medium to large channel letter, vacuum- thermoform letter, light box, 3D letters &shapes – illuminating returns, face or halo effect on background
Company Information

Certifications CE, RoHS
Packaging & Shipping
Our Services 1) Inquiry replied within 12 working hours 2) Customized design available; OEM&ODM welcomed 3) Exclusive and unique solution can be provided 4) Special discount and protection of sales area provided to our distributor. FAQ 1) MOQ : MOQ 1000PCS,QTY<1000PCS handle as sample order. 2) Payment : TT, Westerunion, Paypal, L/C 3) Delivery time: 3-15 working days according to Qty. 4) Others : customer-made lighting colors, customer designs are available. Other questions, Please send email to us or call +86 - 0755- 2704 5110 - 808. Similar products Item No.: YL 8316ZTF-3W2835B Power: 1.2W, DC12V Lumen: 100-110lm

15 years experiences make sure the good color consistency between different batches, and reduce the storage cost. PVC injection housing producing process creat IP65 waterproof level, The LED Modules can operate normally in cloudy, rainy, desert, and snowy weather conditions. Adopting good solder paste, The modules are Pb free. With CE/RoHS/SGS certificates. LED Modules have a long life time of more than 50,000 hours. Waterproof LED Modules are up to 60% more energy efficient than neon. Low voltage DC12V, safety and stable. Free maintenance.


Item No. |
YL8316ZTF-3W2835 | ||||
Size | 82*16*7.9MM | ||||
LED Quantity | 3pcs SMD2835 | ||||
Input Voltage | DC Input 12V | ||||

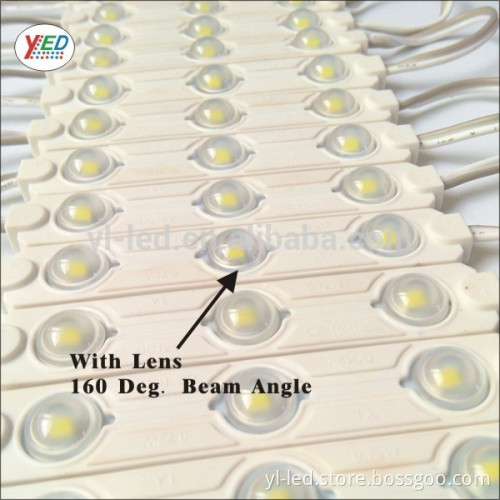

View Angle | 160 Deg. | ||||
Current | 60 mA | ||||
Power | 0.72W / module | ||||
Luminance | 60-65LM | ||||
Color | White 2800-15000K
| ||||
Connector | UL 1007 Gray/White Wire Length 100mm Red Anode White Cathode | ||||
Group | 20PCS | ||||
Max. Group | ≤20PCS | ||||
Base | PVC anti-fire | ||||
Life | 50 000 Hours | ||||
Ambient Temperature | -40°C- 60°C (-40°F~140°F) | ||||
Warranty | 2years | ||||
IP Grade | IP65 |
