72V110Ah LiFePO4 battery pack for electric car

Specification of 72V Battery Pack

No.	Item	Specification
1	Battery module	IFM12-1100E1(12.8V110Ah)
2	Assemble method	6S1P
3	Nominal capacity/Ah	110Ah
4	Nominal voltage/V	76.8V(12.8V*6)
5	Max. Charge voltage/V	≤87.6V(14.6V*6)
6	Discharge cut-off voltage/V	≥60.0V(10.0V*6)
7	Recommended charge current/A	≤55A
8	Discharge current/A	≤150A
9	Max. discharge current/A	≤300A(10S)
10	Weight/Kg	<61Kg
11	Approximate resistance/mΩ	<60mΩ
12	Dimension(for reference only)	depend on configuration
13	Temperature range	charge:0~45°C
		discharge:-10~50°C
14	Storage temperature	-10~45°C
15	Over voltage warning/V	93.6V(15.6*6)
16	Over voltage alarm/V	96V(16.0V*6)
17	Under voltage warning/V	67.2V(11.2V*6)
18	Under voltage alarm/V	55.2V(9.2V*6)
19	Over temperature warning/°C	60°C
20	Over temperature alarm/°C	65°C
21	Regeneration function	Depend on Motor controller

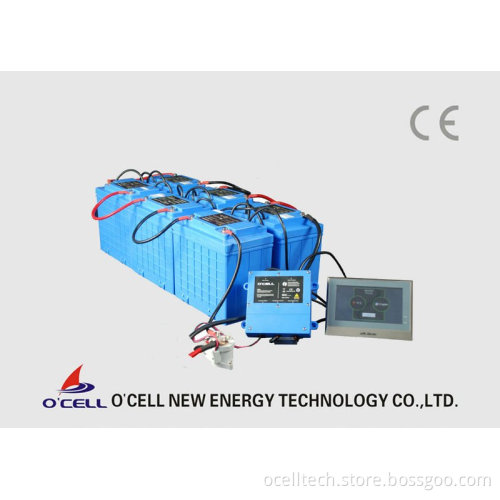

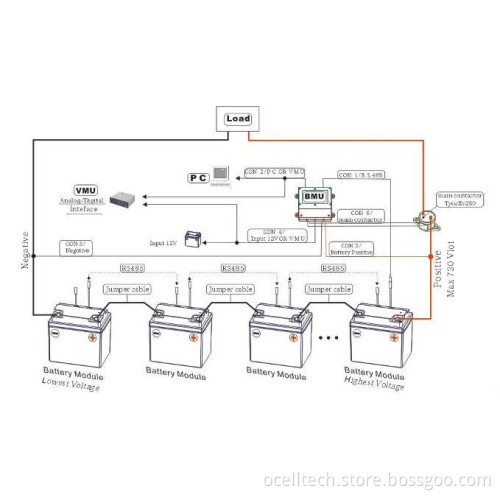

Note: 1. Each Each battery module has one slave BMS circuitry inside; 2. BMU act as master BMS circuitry collect all information from each battery modules through RS485, then decide to cut-off the contactor or not; 3. We We strongly recommend customer to use two contactors (one for charge and another for discharge) in the battery system. Our advantages  Battery module: 1. Modular design makes the system installation, maintenance easier; 2. Battery modules can be connected in series or parallel to make the system    more flexible; 3. IP56 dust and water proof design suit for in severe circumstance; 4. Dual LED indicator makes the battery module status easy to know; BMS: Besides the basic functions such as over charge/ discharge, over current, short circuit, over temperature and balancing, Our BMS owns the following features, 1. Master-Slave architecture makes the system flexible; 2. Two level warning makes maintenance easier; 3. CAN2.0 and industrial level electronic components make system reliable; 4. Contactor makes high rate charge & discharge feasible; 5. Periodic insulation measurement makes personnel safety possible; 6. Host can control the system easily;  BMU Photo Monitoring Software (Need USB-CAN Adapter)
