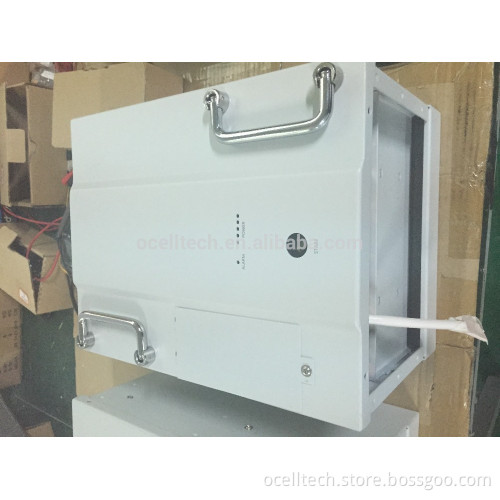

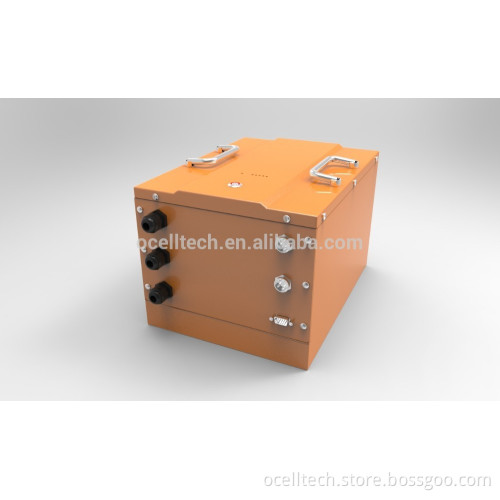

OCELL Lithium Deep Cycle battery 24V60Ah LiFePO4 Battery Pack for AGV

OCELL Lithium Deep Cycle AGV Batteries: LiFePO4 battery 24V 60Ah for Auto Guide Vehicle OCELL Lithium Deep Cycle Batteries, using Lithium Iron Phosphate (LiFePO4) technology offer excellent weight saving within the same footprint as industry standard lead acid (VRLA) alternatives. The internal management system allows them to be used as an alternative to AGM or GEL batteries with minimal changes. LiFePO4 is also an intrinsically safer chemistry with improved safety compared to other lithium options. The integrated management system monitors the current, voltage and temperature of the battery and the cells. When the battery is used outside of the recommended operating parameters it will react and isolate the battery from the system maintaining safety. When the source of the error is removed the system resets so that the battery can be used again. Benefits Between a half and a third lighter than VRLA Very high cycle life compared to VRLA Integrated battery management including cell balancing Fast recharge and superior cycle performance Robust, sealed construction, no maintenance Industry standard sizes UL Certified Cells Applications Portable Power Auxiliary Vehicle Power Marine Solar Power / Renewable Power Defence Medical Carts Environmental Control Back-up Systems Golf trolley AGV Internal Battery Protection Over charge protection Over discharge protection Over current protection Temperature protection Cell balancing function Transportation To be shipped as Class 9 Hazardous Goods, however please contact OCELL team for more information via sales11 AT ocelltech.com

Item	Unit	Specifications
Typical Capacity	Ah	60Ah
Minimum Capacity	Ah	59Ah
Nominal Voltage	Voltage	25.6V
Approx.Weight	Kg	25kgs
Max. Charge Voltage	Voltage	29.2V
Cut-Off Discharge Voltage	Voltage	20V
Standard Charge Current	Amps	20A
Rapid Charge Current	Amps	30A
Continuous Discharge Current	Amps	30A max.
Pulse Discharge Current(5S)	Amps	50A
Storage Temperature Range	oC	-20oC--60oC
Working Temperature (Charging)	oC	0oC--45oC
Working Temperature (Discharging)	oC	-20oC--60oC
Application	Scooter,Wheelchair,Golf Car,Medical cart ,AGV

  It is CRITICAL that you determine your device polarity before using the battery and connect to the battery correctly in polarity. FAILURE TO DO SO MAY RESULT IN SEVERE DAMAGE TO YOUR PRODUCT! Replacement Batteries, Wheelchair Batteries, Emergency Lighting Batteries, Motorcycle Batteries, Floor Scrubber Batteries, Power Sport Batteries, Golf Cart Batteries, Farm/Lawn Garden Batteries, Renewable Energy Batteries, Automotive Batteries, Commercial Batteries, Lithium Batteries, Solar Batteries,LiFePO4 batteires,AGV Batteries
