100mw 532nm green laser dot module with TTL/Analog 0-30KHZ and TEC Cooling

Specifications 100mW 532nm Blue Laser Dot Module + TTL/Analog 0-30KHZ + TEC Cooling + 85-265V

Features:                   Miniature size
Collimated straight beam
Adjustible focuse
Easy use & maintenance free
Longlife operation
High efficiency
High reliability Application: Laser show
Display
Laser Alignment
Scanning Biochemistry
Material Inspection Lidar Specifications:

Model No.	LSR532NL
Wavelength	532nm
Spatial Mode	TEM00
Output Power	100mw
Residual IR (946, 1064&808nm)	<0.01%
Operation Mode	CW or Modulation
Modulation	0~30khz Analog or TTL (Optional, please note to us if you need Analog or TTL, we will send Analog as default)
Beam Spot Shape	Circular, aspect ratio<1.1:1
Pointing Stability	<0.05 mrad
Beam Diameter(1/e2)	<2.5 mm
Beam Divergence(full angle)	<1.5 mrad
Power Stability	<±5% per 4 hrs
Temperature Stabilizing	TEC
Warm Up Time	<1 minute
MTTF	10,000 hrs
Laser head dimensions	100(L)x40(W)x50(H)mm3 (fan adds height)

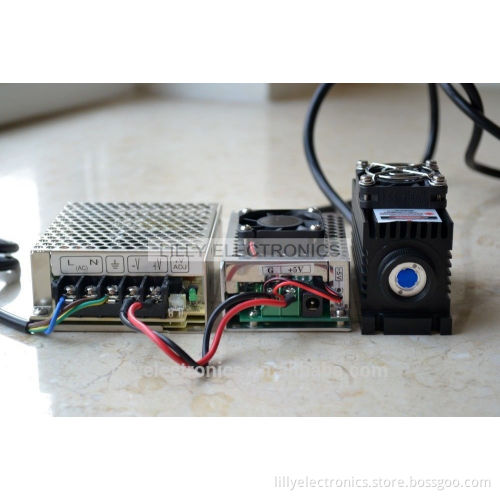

Power Supply (Optional, note to us which type you need, choose B or C type for addtional cost as below. We will ship Power supply A type as default)	A. OEM type LSR-PS-I: 100(L)x58(W)x32(H)mm3 AC/DC PSU: 85~265V 50/60Hz input
	B. Lab type LSR-PS-IIS: 104(W)x128(D)x89(H)mm3  85~265V 50/60Hz input
	C. Lab Adjustable type LSR-PS-IIS: 179(W)x148(D)x56(H)mm3 85~265V 50/60Hz input
Modulation	0~30khz Analog or TTL
