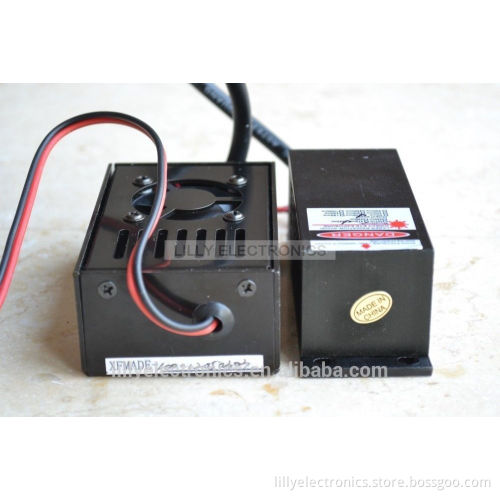

532nm 100mw DPSS Laser Module with TTL + Fan Cooling+ Power Supply 110V-220V
- Delivery Time:
- 1 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Hubei, China (Mainland) |
|---|
Product Description
Product Description
Specifications 100mW 532nm DPSS Laser Diode Module TTL + TEC + Power Supply 110V-220V
Features: . Wavelength: 532nm
Output Power: 90-120mw
Laser Shape: Dot
Beam Mode: TEM00
Operation Mode: CW
Cooling Mode: Fan Cooling
Beam Diameter: 1.5mm
TTL: 0-20KHZ
Operating voltage: AC = 110-220V
Operating Current: I <500mA
Warm up time: None
Operating temperature: -10 ℃ ~ +40 ℃
Storage temperature: +10 ℃ ~ +40 ℃
Lens: Glass Lens
Working Life >5000 Hours
Laser head: 103mm Lx 39mm w x38.5mm H
Power Supply: 94mm L x 60mm W x 35mm H
Notes: 1. This laser module can work for a long time.
2. Please add 110V-220VAC power to this laser module. If you don't use TTL(Blonk+,Blonk- in the middle), please just leave them unconnected.
3. This is a laser module for Laser show. Please protect the lens and keep it clean and avoid dust.
4. Please wear 532nm laser protection goggles to protect your eyes when working on this module.
