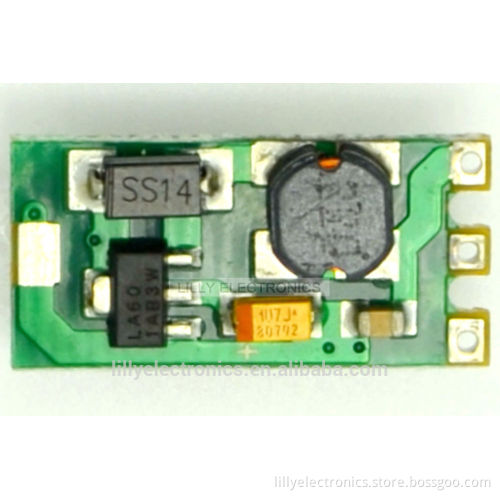

3-5.5V Power Supply Driver for 1-250mw 405nm Violet/Blue Laser Diode Module
- Delivery Time:
- 1 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Hubei, China (Mainland) |
|---|
Product Description
Product Description
Specifications you do not have to worry about the board burning due to wrong battery direction
Quick Details: Output Power 1-250mw
Wavelength 405nm
Input Voltage 3-5.5VDC
Output Current 30-300mA
Dimensions 9X20mm Packaging and Delivery : Package type: carton Delivery time: within 1-3 days after getting payment Specifications 405nm Circuit control: 5.5V boost circuit, constant voltage output
Dimensions: 9 * 20mm (W * L)
Reverse polarity protection: unique reverse polarity protection design, you do not have to worry about the board burning due to wrong battery direction
QSP protection: with soft start protection, even if you frequent switch on/off power supply, it will not damage to the laser diode
Pin Definition: Designed for 405nm LD drive board design, you simply weld pins arranged in LD pins accordingly .
Polarity Definition: Modular housing is the positive, end welded board is negative.
Power supply: it is recommended to use 3.7V rechargeable lithium battery (16340,18650,14500 and 18500 powered), or directly using 5.5V DC power
Company and warehouse photos Based in Wuhan, Central China Hubei Province, Lilly Electronics is engaged in fabrication, sales and R&D of consumer electronics maninly in the industry of Laser, IC and LED! You are welcome to visit us for culture exchange and mutrual business development and progress.
Our service: [Payment Information] 1. T/T (Wire Transfer) 2. WESTERN UNION 3. PAYPAL 4. ESCROW [Shipping] 1. We will ship the items within 3 working days after the payment confirmed. 2. We can ship to you by UPS/DHL/TNT/EMS/FedEx. Please contact us directly and we will use your preferred ways. For the Countries & Regions where EMS cannot deliver, please choose other shipping ways. 3. We are not responsible for any accidents, delays or other issues caused by the forwarder. 4. Any import fees or charges are on the buyer's account Refund & Replacement] 1. We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items). 2. If the items you purchase from our store are not of perfected quality, that is they don't work electronically to manufacturers specifications, simply return them to us for replacement or refund. 3. If the items are defective, please notify us within 3 days of delivery. 4. Any items must be returned in their original condition to qualify for a refund or replacement. 5. The buyer is responsible for all the shipping cost incurred. Other links of our products: http://www.ebay.com/usr/goldy0903, http://stores.ebay.com/lillyelectronics/ http://www.aliexpress.com/store/211860, http://www.aliexpress.com/store/1081270 .
