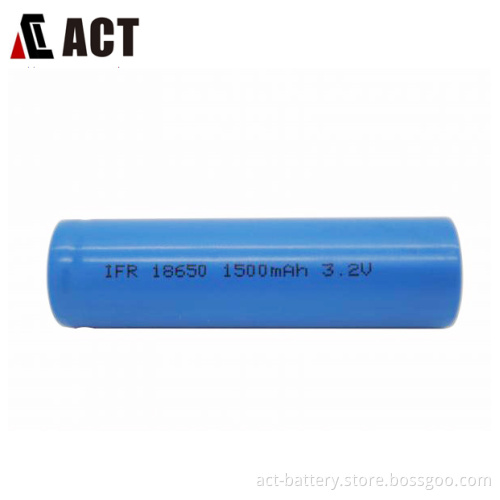

lifepo4 rechargeable battery 18650 3.2v 1500mAh
- Delivery Time:
- 5 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Place of Origin: | Hubei, China (Mainland) |
---|
Product Description
Product Description
lifepo4 rechargeable battery 18650 3.2v 1500mAh Specifications:
Features 1. Lithium Ion 18650 cylindrical rechargeable battery ;-3.7V 2600mAh high capacity-Higher energy density and lower weight than other types rechargeable batteries. 2. Manufactured under ISO9001-2008 to assure quality. 3. Internal PCB protects against under and over charging- low voltage 2.8, high voltage 4.2.
4. Battery tested based on International Electrotechnical Commission (IEC) standard to ensure capacity, quality and life time
5. Applications-Building Laptop Battery-Building portable power device needing high energy density and low weight.
Cautions -Use special caution when working with Li-ion cells, they are very sensitive to charging characteristics and may explode if mis-handled.
-Make sure user has enough knowledge on Li-Ion rechargeable batteries in charging, discharging and assembly before use.
-We are not responsible for any damage caused by misuse or mishandling of theses Li-Ion batteries
Main Applications Widely applied in digital products, portable computers, Bluetooth products, electric tools, lighting devices, toy, household appliances and emergent device area. cordless phone, power tools, instrument and apparatus, electric bikes, motorcycles
Why choose ACT? 1. 10+ Years of experience in battery industry with extensive knowledge. 2. An own property industrail zone of 33,325 square meters. 3. More than 200 workers of production, make sure large order process. 4. Quick analyze, design and prototypes. 5. Professional battery manufacturer of nicd battery, nimh battery, lithium ion battery, li-polymer battery, LiFePO4 Batteries, Li-SOCl2 and Li-MnO2 battery etc. 6. Established quality control systems under ISO9001 & ISO14001 7. OEM/ODM battery packs are available 8. We treat clients as friends with quick action & respond 9. Most batteries are RoHS, CE, UL, UN38.3, MSDS approved. 10. Battery quality: 100% NEW A LEVEL
Certificate

Item | Standard | Note | ||
1 | Standard Capacity | 1500mAh | 0.5C,( current value of 1200mA at 1C) | |
2 | Capacity Range | 1450~1550mAh | 0.5C | |
3 | Standard Voltage | 3.2 V | ||
4 | Alternating Internal Resistance | ≤45mΩ | ||
5 | Charge Conditions | Cut-off Voltage | 3.65±0.05V | constant-current charge to 3.65V at 0.5C, constant voltage charge to stop until 0.01C mA |
Cut-off Current | 0.01C | |||
6 | Discharge Cut-off Voltage | 2.5V | ||
7 | Cycle Characteristic | 2000 times(100%DOD) | the residual capacity is no less than 80% of rated capacity at 1C rate. | |
4000 times(80%DOD) | ||||
7000 times(50%DOD) | ||||
8 | Max. charging current | 1.2A | ||
9 | Max. Continuous Discharge Current | 3.6A | ||
10 | Pulse Discharge Current | 10A, 10s | ||
11 | Working Temperature | Charge:0°C~55°C Discharge:-20°C~60°C | ||
12 | Storage Temperature | -20°C ~ 45°C | Short-term storage (< 3 months) | |
13 | Battery Weight | 40 g (Approx.) | ||
14 | Pack Dimension | Height:(h) 65.2±0.3mm) | Initial Dimension | |
Width:(d) 18.15±0.1mm) |
