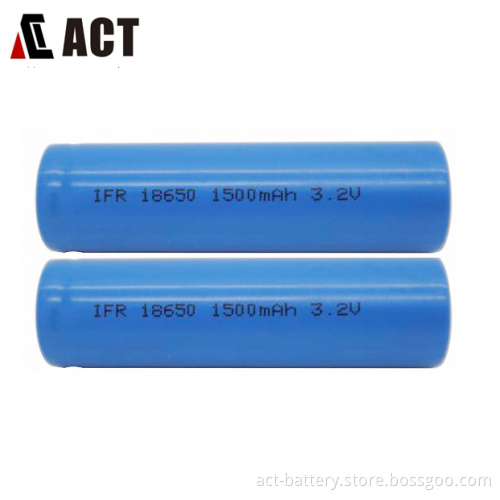

Lithium 3.2V rechargeable battery 18650 size 1500mAh
  • Lithium 3.2V rechargeable battery 18650 size 1500mAh
Lithium 3.2V rechargeable battery 18650 size 1500mAh

Lithium 3.2V rechargeable battery 18650 size 1500mAh

Delivery Time:
5 Days
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Hubei, China (Mainland)
Product Description
Product Description
Lithium 3.2V rechargeable battery 18650 size 1500mAh   Product Description     Specifications:
Item Standard Note
1 Standard Capacity 1500mAh 0.5C,( current value of 1200mA at 1C)
2 Capacity Range 1450~1550mAh 0.5C
3 Standard Voltage 3.2 V
4 Alternating Internal Resistance ≤45mΩ
5 Charge Conditions Cut-off Voltage 3.65±0.05V constant-current charge to 3.65V at 0.5C, constant voltage charge to stop until 0.01C mA
Cut-off Current 0.01C
6 Discharge Cut-off Voltage 2.5V
7 Cycle Characteristic 2000 times(100%DOD) the residual capacity is no less than 80% of rated capacity at 1C rate.
4000 times(80%DOD)
7000 times(50%DOD)
8 Max. charging current 1.2A
9 Max. Continuous Discharge Current 3.6A
10 Pulse Discharge Current 10A, 10s
11 Working Temperature Charge:0°C~55°C Discharge:-20°C~60°C
12 Storage Temperature -20°C ~ 45°C Short-term storage (< 3 months)
13 Battery Weight 40 g (Approx.)
14 Pack Dimension Height:(h) 65.2±0.3mm) Initial Dimension
Width:(d) 18.15±0.1mm)
      Features    1. Lithium Ion 18650 cylindrical rechargeable battery ;-3.7V 2600mAh high capacity-Higher energy density and lower weight than other types rechargeable batteries. 2. Manufactured under ISO9001-2008 to assure quality. 3. Internal PCB protects against under and over charging- low voltage 2.8, high voltage 4.2.
4. Battery tested based on International Electrotechnical Commission (IEC) standard to ensure capacity, quality and life time
5. Applications-Building Laptop Battery-Building portable power device needing high energy density and low weight.  Li-Ion rechargeable batteries in charging, discharging and assembly before use. -We are not responsible for any damage caused by misuse or mishandling of theses Li-Ion batteries
Main Applications   Widely applied in digital products, portable computers, Bluetooth products, electric tools, lighting devices, toy, household appliances and emergent device area. cordless phone, power tools, instrument and apparatus, electric bikes, motorcycles
Package
  Payment 1, T/T, Western Union, Paypal, L/C 2, Sample order:100% prepaid;      Mass order: 30% deposite for order confirmation, 70% balance payment before shipment Contact information Conatct: Dolly Du Skype: sales09_41 Email: sales09(at)act-battery.com Mobile: 0086-13510571285 Our Company     Certifications MSDS & UN38.3 CE & UL ISO9001 & ISO14001
