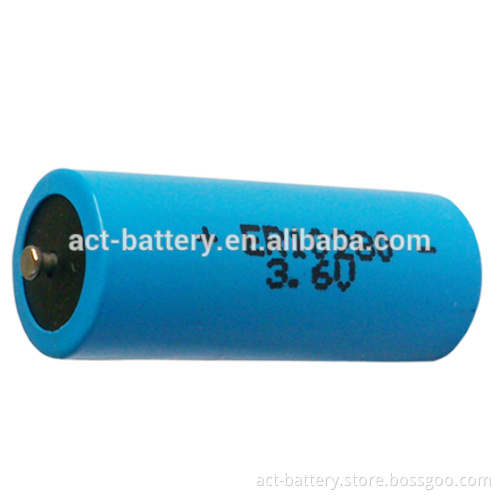

3.6v ER10280 lithium battery with low price
- Delivery Time:
- 7 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Hubei, China (Mainland) |
|---|
Product Description
Product Description
Product Description
Company Information
About ACT Batteries Applicantion: 1. Radiocommunication and other military applications 2. TPMS 3. RFID 4. Alarms and security systems 5. Beacons and energy location transmitters 6. GPS equipment 7. Metering systems 8. LED applications 9. Others Feature: 1. Higher energy density and lower weight. 2. Superior drain capacity. 3. Low self-dischage rate (less than 1% after 1 year of storage at 20 °C. 4. Stainless steel container. 5. Hermetic glass-to-metal sealing. 6. Non-flammable electrolyte. 7. Laser weilding. 8. Injection at bottom,avoiding the leakage of galss-to-metal. 9. Long service life-10 years 10. Short delivery,reasonable price and perfect service. 11. Cetificate:ISO9001,UN,UL,meet the RoHs requiretment. 12. Self-develop, Strong machining ability & quickly developing new type's battery 13. powerful equipments, strong production ability Storage: 1. Cells should not be stored in a clean & dry (less than 30%RH) area 2. Temp . should not exceed ±30℃ Friendship tips: 1. Do not use if cell casing is mangled 2.Do not use different model of sell in series 3.Soldering the tag should be finsihed in a few seconds 4. Do not try to recharge Our Services Quality Warranty: 1. Most of the battery components are self-develop in ACT, who own strong machining ability & quickly deceloping a variety of new type's batteries. 2. On time delivery. 3. Return goods without reason before 7 days. 4. Warranty 1 year. Payment Terms: 1. T/T, Western Union, Paypal 2. Sample order:100% prepaid; Mass order: 30% deposite for order confirmation, 70% balance payment before shipment
| Model | ER10280 |
| Brand | ACT or OEM |
| Nominal capacity | 500mAh @ 0.5mA to 2.0V @ 20°C |
| Dimension | 10.5(D)*28.0(H)mm |
| Size | 2/3AAA |
| Chemistry | Lithium thionyl chloride |
| Cell Type | Primary, non-rechargeable, Bobbin Type |
| Nominal Voltage | 3.6V |
| Open circuit voltage | 3.66V |
| Weight | Approx. 5g |
| Shelf life | 10 years |
| Max. continuous discharge current | 10mA |
| Max. pulse discharge current | 20mA |
| Yearly self- discharge | ≤1% |
| Certification | CE/RoHS/UL/UN38.3 |
| Operating Temperature Range | -55C~+85C |
| Storage ( Recommended ) | 20C ~ +25C |
| Terminals/Connector | Radial tabs / radial pins / axial leads / flying leads |
| Exterior/Housing | Stainless steel container |
| Welding technology | Laser |
| Factory area | 33,325 square meters |
| Alternative models | - |
Company Information About ACT Batteries Applicantion: 1. Radiocommunication and other military applications 2. TPMS 3. RFID 4. Alarms and security systems 5. Beacons and energy location transmitters 6. GPS equipment 7. Metering systems 8. LED applications 9. Others Feature: 1. Higher energy density and lower weight. 2. Superior drain capacity. 3. Low self-dischage rate (less than 1% after 1 year of storage at 20 °C. 4. Stainless steel container. 5. Hermetic glass-to-metal sealing. 6. Non-flammable electrolyte. 7. Laser weilding. 8. Injection at bottom,avoiding the leakage of galss-to-metal. 9. Long service life-10 years 10. Short delivery,reasonable price and perfect service. 11. Cetificate:ISO9001,UN,UL,meet the RoHs requiretment. 12. Self-develop, Strong machining ability & quickly developing new type's battery 13. powerful equipments, strong production ability Storage: 1. Cells should not be stored in a clean & dry (less than 30%RH) area 2. Temp . should not exceed ±30℃ Friendship tips: 1. Do not use if cell casing is mangled 2.Do not use different model of sell in series 3.Soldering the tag should be finsihed in a few seconds 4. Do not try to recharge Our Services Quality Warranty: 1. Most of the battery components are self-develop in ACT, who own strong machining ability & quickly deceloping a variety of new type's batteries. 2. On time delivery. 3. Return goods without reason before 7 days. 4. Warranty 1 year. Payment Terms: 1. T/T, Western Union, Paypal 2. Sample order:100% prepaid; Mass order: 30% deposite for order confirmation, 70% balance payment before shipment
