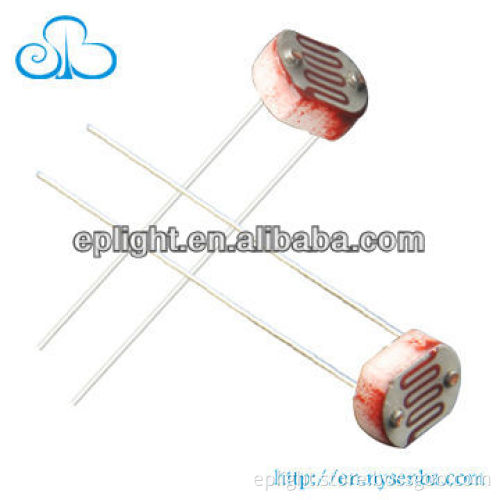

5mm CDS Cheap LDR Photoresistor GL5537-2 30-50Kohms

Specifications 1.mall volume

2.High sensitivit

3.Good reliability

4.Coated with epox

5.widely used in many industries

5mm CDS Cheap LDR Photoresistor GL5537-2  30-50Kohms   Photoresistor is a resistor which made of semi-conductor material,and the conductance changes with luminance variation .The photoresistor can be manufactured with different figures and illuminate area based on this  characteristic.   Performances and Features  Coated with epoxy Good Reliability High Sensitivity Small Volume Fast Response Good Spectrum Characteristic   Applications Switch Light control Electronic toy Light control lamp Photoelectric control Industrial control Camera automatic photometry Annunciator   Types and Specifications

Specification	Type	Max. Voltage (VDC)	Max.  power (mw)	Environmental  temp.	Spectrum  peak value (nm)
φ5  series	GL5516	150	90	-30~+70	540
	GL5528	150	100	-30~+70	540
	GL5537-1	150	100	-30~+70	540
	GL5537-2	150	100	-30~+70	540
	GL5539	150	100	-30~+70	540
	GL5549	150	100	-30~+70	540



Specification	Light  resistance  (10Lux)      (KΩ)	Dark resistance  (MΩ)	r100/10	Response time  (ms)		luminance  resistance  Fig. No.
				Increase	Decrease
φ5  series	5-10	0.5	0.5	30	30	2
	10-20	1	0.6	30	30	2
	20-30	2	0.6	30	30	3
	30-50	3	0.7	30	30	4
	50-100	5	0.8	30	30	4
	100-200	10	0.9	30	30	5
