Good Reliability 12mm Photoresistor GL125 series Biggest Manufacturer in China

Specifications GL125 series Photoreistor

Max. voltage: 250VDC

Max. power:200mw

Light resistance: 5-100Kohms

Spectrum peak value:560nm

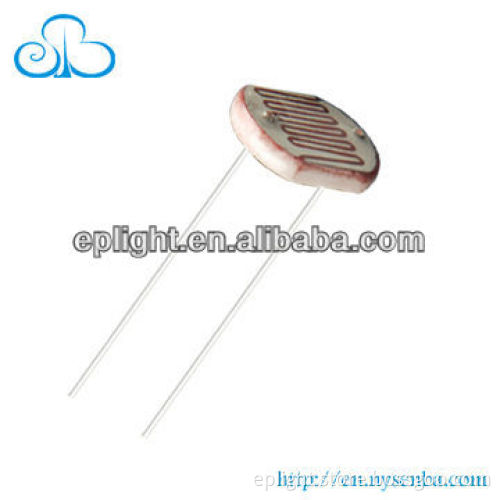

12mm CDS  Photoresistor   SENBA   GL12537-1   Photoresistor is a resistor which made of semi-conductor material,and the conductance changes
with luminance variation .The photoresistor can be manufactured with different figures and illuminated
area based on this characteristic.Photoresistor is widely used in many industries, such as
toys,lamps,camera,etc. Systems  7 including the model of  GL12516,GL12528,GL12537-1,GL7537-2,GL12539.   Performances and Features Coated with epoxy Good Reliability High Sensitivity Small Volume Fast Response Good Spectrum Characteristic   Applications Switch Light control Electronic toy Light control lamp Photoelectric control Industrial control Camera automatic photometry Annunciator   Specifications

Specification	Type	Max. Voltage (VDC)	Max.  power (mw)	Environmental  temp.	Spectrum  peak value (nm)
φ12 series	GL12516	250	200	-30~+70°C	560
	GL12528	250	200	-30~+70°C	560
	GL12537-1	250	200	-30~+70°C	560
	GL12537-2	250	200	-30~+70°C	560
	GL12539	250	200	-30~+70°C	560



Specification	Light  resistance  (10Lux)  (KΩ)	Dark  resistance  (MΩ)	r100/10	Response time  (ms)		Illuminance  resistance  Fig. No.
				Increase	Decrease
φ7 series	5-10	1	0.6	30	30	3
	10-20	2	0.6	30	30	3
	20-30	3	0.7	30	30	4
	30-50	5	0.8	30	30	4
	50-100	8	0.8	30	30	6

  Senba photoresistor Sales summary (Unit:million sticks)       2000      2001      2002      2003       2004     2005     2006       2007      2008
