pir sensor for wardrobe lighting,night lights, sensor lights, pir lamp

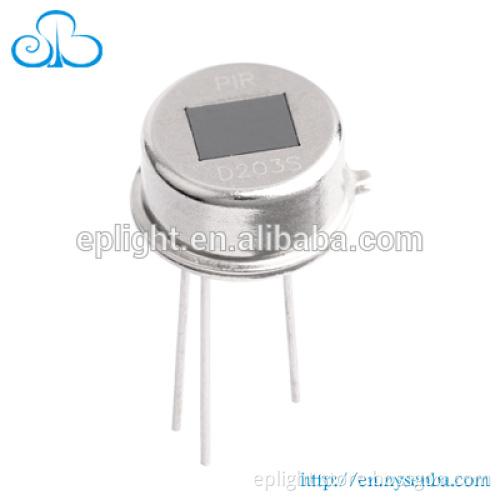

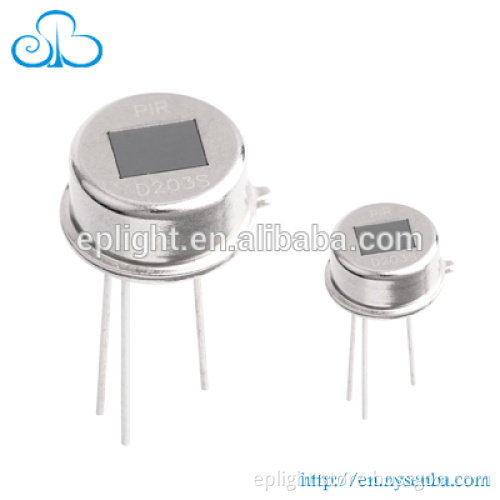

PIR motion sensor, similar pir sensor that can replace RE200B, with lower cost!   Model No.: D203S    Typical Applications   1.security systems, infrared camera
2.burglar alarms 3.home appliances(air-conditioner, fan) 4.light switch control,lamp 5.intellectualized toy,etc.    Technical Patameter for PIR d203s

Recommended Model	D203S small window
Encapsulation Type	TO-5
IR Receiving Electrode	2×1mm, 2 elements
Window Size	4×3mm
Spectral Response	5—14µm
Transmittance	≥75%
Output Signal[Vp-p]	≥3500mV
Sensitivity	≥3300V/W
Detectivity (D*)	1.4 ×108 cmHz1/2/W
Noise[Vp-p]	<70mV
Output Balance	<10%
Offset Voltage	0.3~1.2V
Supply Voltage	3—15V
Operating Temp	-30—70ºC
Storage Temp	-40—80ºC
