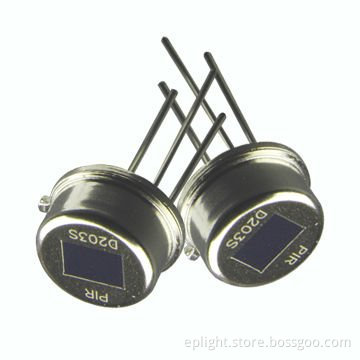

Senba pir sensor D204S for alarm, pir camera human detect

Specifications PIR motion sensor

1.top manufacturer in China

2.high sensitivity, with EMI

3.technical support

4.good price,fast delivery

Passive Infrared Radial Sensor
The pyroelectric infrared(pir) sensor detects infrared radiation on the basis of the characteristics that the self-polarization of pyroelectric material changes with temperature.    Data sheet for motion sensor D204S

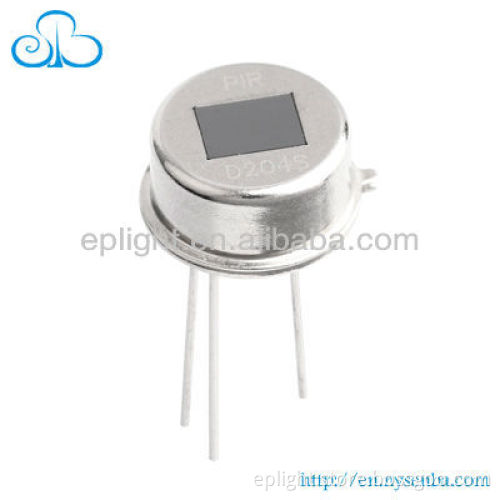

Recommended Model	D204S small window
Encapsulation Type	TO-5
IR Receiving Electrode	2×1mm, 2 elements
Window Size	4×3mm
Spectral Response	5—14µm
Transmittance	≥75%
Output Signal[Vp-p]	≥3500mV
Sensitivity	≥3300V/W
Detectivity (D*)	1.4 ×108 cmHz1/2/W
Noise[Vp-p]	<70mV
Output Balance	<10%
Offset Voltage	0.3~1.2V
Supply Voltage	3—15V
Operating Temp	-30—70ºC
Storage Temp	-40—80ºC

    General Applications   1.burglar alarms 2.security systems, IR camera 3.sensor switch control, led bulb, led tube  4.intellectualized toys, etc. 5.any products need to detect human, easy to integrated
