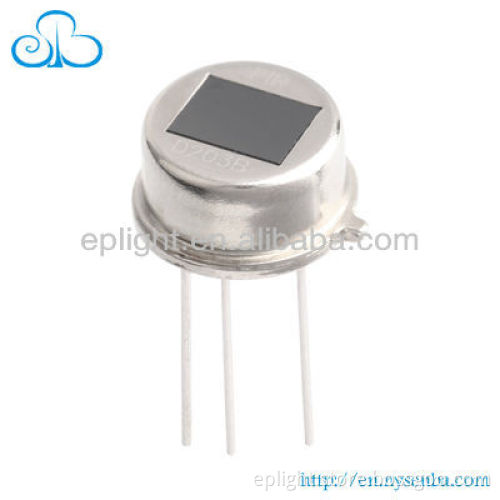

for LED lights PIR D203B, wide detect range motion sensor

Specifications pir sensor D203B

1.big window, long distance

2.highly sensitive to human motion

3.stable and reliable

4. best factory price

Best price PIR motion sensor from factory, largest manufacturer in China   Model No. : D203B   The pyroelectric infrared sensor detects infrared radiation from human,  the polarization of pyroelectric material changes with temperature. Dual compensated sensing elements are applied to suppress the interference resulting from temperature variation.     Applications for small motion sensor   1.security systems, ir camera 2.burglar alarms, 3.home appliances( air-conditioner, fan) 4. light switch control, lamp, LED tube 5.intellectualized toy, etc. 6.other human detect system   Data sheet for human motion sensor

Recommended Model	D203B big window
Encapsulation Type	TO-5
IR Receiving Electrode	2×1mm, 2 elements
Window Size	5×3.8mm
Spectral Response	5—14µm
Transmittance	≥75%
Output Signal[Vp-p]	≥3500mV
Sensitivity	≥3300V/W
Detectivity (D*)	≥1.4 ×108 cmHz1/2/W
Noise[Vp-p]	<70mV
Output Balance	<10%
Offset Voltage	0.3~1.2V
Supply Voltage	3—15V
Operating Temp	-30—70ºC
Storage Temp	-40—80ºC

       We are the largest PIR sensor manufacturer in China, with 14 years experience, and 50% of the market share.
