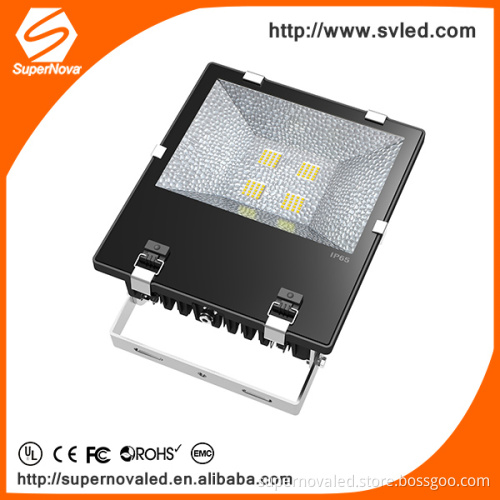

IP65 CE ROHS FCC Outdoor LED Flood light

We accept Trade Assurance.
IP65 CE ROHS FCC Outdoor LED Flood light
1.Application for led flood light:
led flood light are widely used in tunnel lighting,outdoor flood lighting, architectural decoration lighting, industrial areas lighting,sport center lighting, outdoor stadium,dock and port.
2.led flood light introduction:
(1)Special heat dissipation technology which can transmit and radiating heat with high performance. High heat radiating technology to reduce led body temperature. The working time of led source and driver has been extend in this way.
(2)led flood light chip is orginal chip which with high lumens efficacy.the product is high quality.
(3)The surface of heatsink was treated with anodic oxidation technology.
(4)The led flood light doesn’t contain lead,mercury and other pollution elements.it’s environment friendly product.
(5)This product’s CRI is high than normal flood light product. the physical color rendering more real, a variety of light colors optional, to meet the needs of different environments, eliminating the traditional lamp color temperature is high or low depressed mood, the visual comfort, improve people's efficiency.
(6)led flood light can save 60%-70% energy than traditional lamps.
(7)High PF value, more than 0.95, in order to improve their energy usage rate, reduce the loss, reduce the harmonic pollution of the power network, reducing the power load.   Product Description Good Heat Disspation White led flood light       led flood light:  led flood light PCB Modules:   Led Chip for led flood light:   Dimension of led flood light: Structure of led flood light: led flood light ISO Illumination Data: led flood light Applications Cases:
  Features of led flood light:
led flood light is a new type of LED lighting source, developed on the basis of the traditional flood light products, compared with the traditional floodlight, high thermal conductivity, light failure is small, light color purity, no ghosting, energy saving, environmental protection, long service life, etc, the products adopt constant current constant voltage control, power supply with high efficiency. 1. High efficiency & energy saving. Under the condition of the same llumination, led flood light saves more than 70% energy compared with the traditional lamp.
2. led flood light have long life span, led flood light using semiconductor chip as the light resource, the life of led flood light can be over 50,000hrs.
3. led flood light is No UV & IR . It won’t distribute ray radiation.
4. led flood light is Eco-friendly, No Hg & Xe ,or other harmful element. Recyclable, also it won’t generate EMI.
5. High performance external constant current drivers, no stroboscopic, good for eyesight protection.
6. Patent integrated light sources, high quality //Bridgelux/Epistar chip, high Light effects, high color rendering index.
7. Thermal design, integration of the advanced die-casting forming, small contact resistance, high cooling efficiency.
8. Protection level reaches IP65.  Welcome to order Good Heat Disspation White led flood light 10w 30w 50w 100w 150w 200w led flood light Parameters:

Power		10W	30W	50W	100W	150W	200W
Input Voltage		AC90V-305V
Frequency Range		47Hz--63Hz
power Factor		>0.95
Power Efficiency		>92%
LED Working Voltage		DC36-42V	DC27-36V	DC36-42V	DC36-42V	DC27-36V	DC27-36V
LED quantities		1 Pc	1 Pc	1 Pcs	2 Pcs	4 Pc	4 Pcs
LED consumption		10W	30W	50W	100W	150W	200W
System Consumption		10W±1%	32W±1%	52W±1%	105W±1%	155W±1%	205W±1%
luminous efficiency of luminaire		>110lm/W
CCT	Warm white	3000-3200K
	Neutral white	4000-4500K
	Cool white	6000-6500K
Color Rendering Index	7	Ra>70
	8	Ra>80
	9	Ra>90
LED  Junction Temperature		≤70℃
Working Temperature		“-30℃~+55℃”
storage Temperature		“-25℃~+65℃”25℃ is the best
IP Grade		IP65
Working life-span		50,000Hours
Power line		18 AWG three core line
Brown		L (Positive line)
Blue		N (negative line)
Yellow/Green		Earth line
Color of lamp shell		black
certificate		FCC CE,ROHS, EMC LVD
Light weight : N.W.		0.6KG	1.3KG	1.8KG	5.4KG	9.8KG	9.8KG
Light packing dimension		44*30*45CM/20pcs	55*46*41CM/12pcs	78*53*34CM/10pcs	69*39*53CM/4pcs	48*42*25CM/1pc	48*42*25CM/1pc

Packaging & Shipping 1.Detail of led flood light: Surface Treatment;spray paint /anticathode   Color : Black  IP grade IP65   Windproof;20 Grade   Packing size:
led flood light packing size(master carton): 480*420*245MM/1pc Both inner boxes and cartons can be customized
2. The shipment of led flood light can be DHL,UPS,FEDEX,TNT,and sea transportation,can be customized. Welcome to order  Good Heat Disspation White led flood light
  Our Services 1. We have our own independent R&D department on existing products for better maintenance, we still continue to develop high-tech products. We have our own patented products. 2. Our products must pass strict quality control procedures. 3. We have advanced production equipment.So welcome to order led flood light. 4. We use the raw materials are from domestic and foreign well-known brand manufacturers. 5. After repeated tests before shipment.So welcome to order Good Heat Disspation White led flood light     Company Information FAQ Q: What is the chips brand available for led flood light?
A: We offer 3030 LEDs//Bridgelux to manufacture led flood light.

Q: What is the application?
A:led flood light apply for LED garden light, LED square light, LED airport light, LED hotel light ETC.Welcome to order Good Heat Disspation White led flood light
Q: What are the advantages?
A: led flood light adopt famous brand and Original led chips , High luminous flux up to 120-140Lumen per watt, led flood light is easy to install, Light efficiency up to 110Lumen per watt. led flood light have over 50000 hours lifespan.   Q: How about the service ?
A: Good quality , fast delivery , best price . Exclusive skill and unique solution of our professional engineers and staffs ,Reply in 24 hours ,Professional staffs answer for ur questions , OEM & ODM welcome   Q : How long about the delivery time ?
A: For led flood light sample :3-5 days . For led flood light mass production : about 7-15 days
Q: How about the quality ?
A: High-end product . Advanced design. Professional staffs . Good source of materials and production line . Good supervision of production. Exclusive skill and unique solution . Pay attention to details.  Welcome to order Good Heat Disspation White led flood light
