FACTORY SUPPLY!!NEW HOT SELL 30w-200w IP67 led street light module with CE ,RoHs

FACTORY SUPPLY!!NEW HOT SELL 30w-200w IP67 led street light module with CE ,RoHs   Product Description Product Description:     A. Revolutionary light distribution design ( Rectangular Facula Condesing Lens-- 65*135 degree) .Control light distribution reasonably and ensure the brightness and evenness.

B. Use Origianl CREE-X-ML2 Chips. Can reach 85-100lm/W (3000-6500K)

C. Perferct Heat Dissipation Technology : Use Reflow Soldering Processing Technique .

D. Aluminum Alloy Heat Sink : 1070 Type. The Coefficient of Heat Conductivity can Reach 226 W/m.K.

E. IP67. The Module can Work Normally Under Water.

F. Use Sosen or Meanwell Driver . Also can connect to DC12 / 24V.

G. 5 Years warranty.

Product Name	60W led street light
Power	60W
Led chip brand	Cree-X-ML2
Led Module quantity	1 pcs
Total led chip quantity	12pcs
CCT	2700-6500K
luminous Flux	5100-6000lm
Power Factor	>0.95
Beam Angle	65*135 degree
Total Hamornical	<15%
Power Efficiency	>95%
CRI	75 Ra
Input Voltage	AC90-305V;DC12/24V
Output Voltage	DC 30-42V
Output Current	1400mA
Frequency Range	50-60Hz
Work Temperature	-40 +55
Heat sink surface temperature	52-55°C
IP Grade	IP67
Certification	CE&ROHS
Product Size	620*262*162mm
NW	4.5 Kg
Warranty	5 Years
Lumens Depreciation	5000hs less than 3%;30,000hs less than 15%
Material	Aluminum
Install height	8-10M
Power Supply	Meanwell or Sosen
Life	>50,000Hs

  Module Design: ---Material:

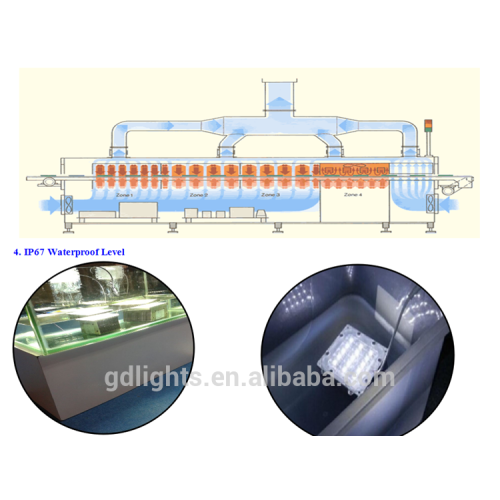

  ----Private Mould: ---Processing Technique--Reflow Soldering Technology: Reflow soldering is the modern mechanism for assembling most printed circuit boards today. Reflow soldering enables mass production at a very rapid rate by allowing placement of the components to be separated from the actual soldering process.With reflow soldering technology applying in our module production, we can solve the heat issue very well. ----IP67:     Installation:   Projects:   Packaging & Shipping   Shipping: Our Services   Our Service: 1.Delivery Time:2-5Working days for sample.5-15Working days for general order.
2.MOQ:We do not have strict regulation on this.Sample test is available.
3.By express:DHL, UPS, FEDEX. We will search the most economical shipping company to transport the goods safely
4.Air Freight: When you order more than 100kg which will be more economical than express.
5.Sea transportation: If you order large quantity,we can help you to delivery the goods by sea  Company Information   Company Information:   -Date of Foundation: 2008 -Annual Sales Performance: Over 60million -Sales Market : Domestic(30%), Oversea(70%) -About QC:100% full inspection on raw material &100% good quality goods deliver to customer -Main Product:LED Retrofit Kit, LED Street Light,LED Canopy Light, LED Stadium Light, LED Track Light &LED Downlight -ISO9001:14000 certificated factory
FAQ   FAQ:   1. What are your market reach throughout the region? Our markets around the world in every corner, we have eight years of experience in foreign trade, our customer base has, we have worked with us in every country buyers, producers and distributors to reach more than 30,000.   2. What is your main product line is made? We mainly produce led outdoor &indoor commercial lights. (led track light, led flood light, led module,led street light, led canopy light,more.)   3. Your factory or trading company? We are a factory, we provide OEM services. Some famous foreign supermarkets and we often collaborate.   4. If I have a question on your track led light I would like advice on, how to contact you? You can sns platform or directly through major inquiry and send e-mail to consult us. Look for our logo.
